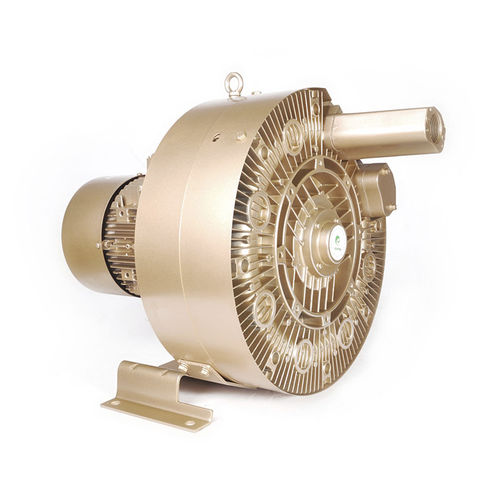

Air blower GHBG 4D4 34 2R6side-channeltwo-stageregenerative
Add to favorites
Compare this product
Characteristics
- Type
- air
- Technology
- side-channel
- Number of stages
- two-stage
- Applications
- regenerative
- Other characteristics
- oil-free, high-pressure
- Flow
Max.: 165 m³/h
(5,826.92 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Operating pressure
Max.: 500 mbar
(7.252 psi)Min.: 0 mbar
(0 psi)- Nominal power
3.3 kW
(4.487 hp)
Description
Phase: Three
Frequency:50/60 (Hz)
Rated Power: 3.3/3.8 (kW)
Rated Voltage: 220-240△345-415Y | 220-275△380-480Y (V)
Rated Current: 13△/7.5Y | 14.2△/8.2Y (A)
Max AirFlow: 165/195 (m3/h)
Max Vacuum: -460/-480 (mbar)
Max Pressure: 500/420 (mbar)
Sound: 67 dB(A)
Weight: 48 (kg)
Why choose GOORUI blower?
High efficiency motor；
IP55 & Insulation class H；
Built-in Thermal Protector(PTC)；
High Temperature-Resistance bearing；
Special customized blower and OEM available；
24 months warranty and long-term technical support；
CCC, CE, SGS, TUV, RoHS, ISO9001 certification approved.
