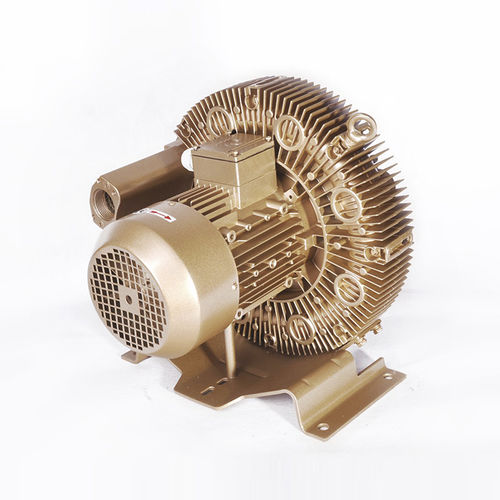

Side-channel blower GHBG 003 34 1R5airsingle-stage220 V / 50 Hz
Add to favorites
Compare this product
Characteristics
- Type
- air
- Technology
- side-channel
- Number of stages
- single-stage
- Voltage / frequency
- 220 V / 50 Hz, 220 v / 60 Hz, 380 v / 50 Hz, 380 v / 60 Hz
- Flow
120 m³/h, 145 m³/h
(4,237.76 ft³/h, 5,120.627 ft³/h)- Operating pressure
Max.: 480 mbar
(6.962 psi)Min.: -310 mbar
(-4.496 psi)- Nominal power
2.2 kW, 2.55 kW
(2.991 hp, 3.467 hp)- Sound level
64 dB, 68 dB
- Weight
29 kg
(63.93 lb)
Description
Specification：
Model No.:GHBG 003 34 1R5
Frequency:50Hz
Power:2.2KW
Voltage:200-240(V)
Current:11.4(A)
Max Airflow:120m3/h
Max Vacuum:-310mbar
Max Pressure:470mbar
Sound:64db(A)
Weight:29kg
Certificate:CE/SGS/ROHS/TUV/ISO certificates
Why choose GOORUI blower?
High efficiency motor；
IP55 & Insulation class H；
Built-in Thermal Protector(PTC)；
High Temperature-Resistance bearing；
Special customized blower and OEM available；
24 months warranty and long-term technical support；
CCC, CE, SGS, TUV, RoHS, ISO9001 certification approved.
