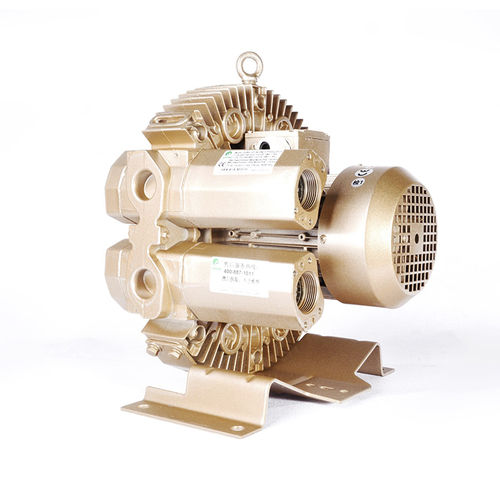

Side-channel pump GHBG 003 34 1R6airwith electric motorindustrial
Add to favorites
Compare this product
Characteristics
- Technology
- side-channel
- Fluid
- air
- Operation
- with electric motor
- Domain
- industrial
- Applications
- blower
- Flow
Max.: 195 m³/h
(6,886.36001 ft³/h)Min.: 160 m³/h
(5,650.34668 ft³/h)- Pressure
Max.: 360 mbar
(5.221 psi)Min.: -360 mbar
(-5.221 psi)- Power
Max.: 2.55 kW
(3.47 hp)Min.: 2.2 kW
(2.99 hp)
Description
Specification：
Model No.:GHBG 003 34 1R6
Frequency:50Hz
Power:2.2KW
Voltage:200-240/345-415Y(V)
Current:11.4/6.6Y(A)
Max Airflow:165m3/h
Max Vacuum:-340mbar
Max Pressure:360mbar
Sound:65db(A)
Weight:32kg
Certificate:CE/SGS/ROHS/TUV/ISO certificates
Why choose GOORUI blower?
High efficiency motor；
IP55 & Insulation class H；
Built-in Thermal Protector(PTC)；
High Temperature-Resistance bearing；
Special customized blower and OEM available；
24 months warranty and long-term technical support；
CCC, CE, SGS, TUV, RoHS, ISO9001 certification approved.
