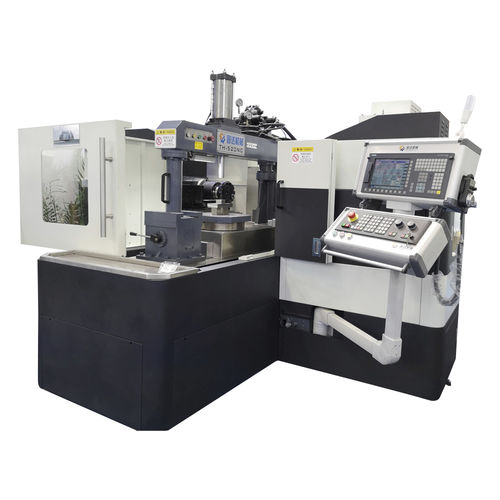

2-spindle CNC milling machine TH-520NC4-axishorizontalfor aluminum
Add to favorites
Compare this product
Characteristics
- Number of axes
- 4-axis
- Spindle orientation
- horizontal
- Machined material
- for aluminum
- Number of spindles
- 2-spindle
- Spindle mount
- NT50
- Associated functions
- chamfering, cutting
- Applications
- for the mold industry, for molds, for small workpieces, for aluminum profiles, for small parts production
- Other characteristics
- high-speed, high-speed, CE
- X travel
250 mm
(9.84 in)- Y travel
250 mm
(9.84 in)- Z travel
800 mm
(31.5 in)- Rotational speed
Max.: 500 rpm
(3,142 rad.min-1)Min.: 50 rpm
(314 rad.min-1)- Power
9 kW
(12.24 hp)- Work feed X-axis
10,000 mm/min
(7 in/s)- Work feed Y-axis
10,000 mm/min
(7 in/s)- Table load capacity
500 kg
(1,102 lb)- Weight
8 t
(8.82 us ton)- Overall length
3.2 m
(10'05" )- Overall width
3.1 m
(10'02" )- Overall height
2.4 m
(7'10" )
Description
CNC twin head milling machine TH-520NC
The best choice of surface milling machine for 20-520mm square workpieces.
Cutting range: 20x20~520x520mm
Max. Cutting thickness: 190mm
Max. Cutting capacity: 2x2.0mm
Machine base with rigid, one piece iron construction
Powerful vertical hydraulic clamping with one main cylinder
The flatness of workpiece≤0.01/300mm
Parallelism≤0.01/300mm²
Machining accuracy tolerance zone 0.02/1000mm
Productivity Features
1. Clamping the workpiece by the vertical hydraulic operator.
2. Milling the 2 sides with 2 cutters at one time automatically.
3. After milling 2 sides, index table is automatically rotated 90 degrees.
4. Milling the 2 remaining sides automatically.
