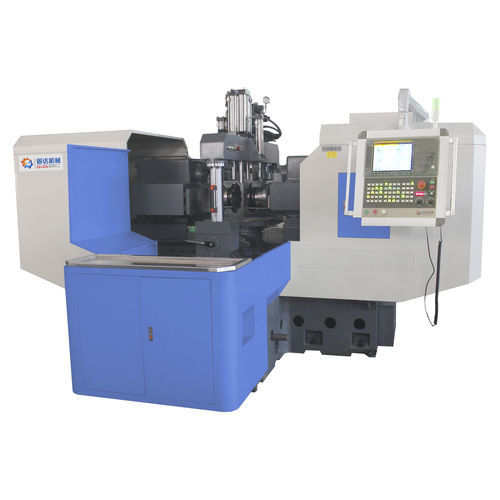

2-spindle CNC milling machine TH-700NC4-axishorizontalBT 50
Add to favorites
Compare this product
Characteristics
- Number of axes
- 4-axis
- Spindle orientation
- horizontal
- Number of spindles
- 2-spindle
- Spindle mount
- BT 50
- Associated functions
- cutting
- Applications
- for large workpieces, for aluminum profiles
- Other characteristics
- high-speed, precision, CE
- X travel
390 mm
(15.35 in)- Y travel
390 mm
(15.35 in)- Z travel
1,000 mm
(39.37 in)- Rotational speed
Max.: 500 rpm
(3,142 rad.min-1)Min.: 50 rpm
(314 rad.min-1)- Power
11 kW, 15 kW
(14.96 hp, 20.39 hp)- Workpiece max height
240 mm
(9 in)- Work feed X-axis
8,000 mm/min
(5 in/s)- Work feed Y-axis
8,000 mm/min
(5 in/s)- Table load capacity
1,200 kg
(2,646 lb)- Weight
13 t
(14.33 us ton)- Overall length
4.6 m
(15'01" )- Overall width
4.2 m
(13'09" )- Overall height
2.5 m
(8'02" )
Description
The best choice of surface milling machine for 30-700mm square workpieces.
CNC twin head milling machine TH-700NC
Cutting range: Belt type: (30-30)*(700-700)*245(Opt 290)mm
Gear box (110*110)*(700-700)*245(Opt 290)mm
Max. Cutting capacity: 2x3mm
Milling accuracy：Squareness tolerance≤0.015mm/300mm，accuracy tolerance range+/-0.01mm，roughness≤1.6um，parallelism≤0.015/300mm²
Productivity Features
Machine base with rigid, one piece iron construction
Precision 4 sides milling with gear box spindle more powerful;
Nitrogen balance system reduce the spindle's work load;
User-friendly touch screen and easy learning program.
One time setup automatic processing.
Automatic locking and measurement;
Automatic processing from rough-milling to finish-milling.
