Vertical CNC milling machine VM-1060NC3-axiscolumn typefor aluminum
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- column type
- Machined material
- for aluminum
- Spindle mount
- BT 50
- Associated functions
- cutting
- Applications
- for small workpieces, for aluminum profiles
- Other characteristics
- high-speed, high-rigidity, with automatic tool changer
- X travel
1,400 mm
(55.12 in)- Y travel
400 mm
(15.75 in)- Z travel
340 mm
(13.39 in)- Workpiece max height
300 mm
(12 in)- Work feed X-axis
8,000 mm/min
(5 in/s)- Work feed Y-axis
8,000 mm/min
(5 in/s)- Table load capacity
1,500 kg
(3,307 lb)- Weight
8,000 kg
(17,636.98 lb)- Overall length
3.4 m
(11'01" )- Overall width
2.6 m
(8'06" )
Description

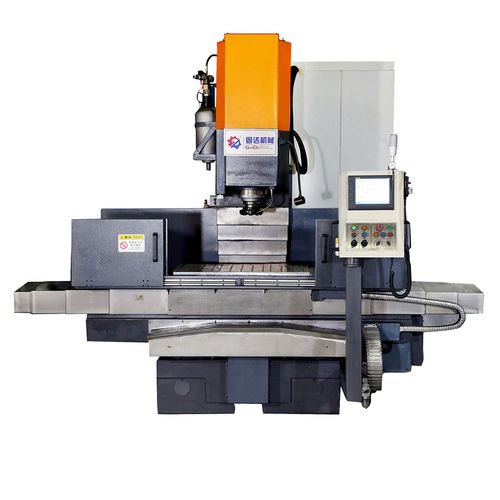

Gooda VM-1060NC CNC vertical plane milling machine
System optional, gear head / belt spindle/ system optional
Using vertical machining center structure, strong rigidity
Both milling plane and programmable , multi-purpose for one machine
Affordable price
