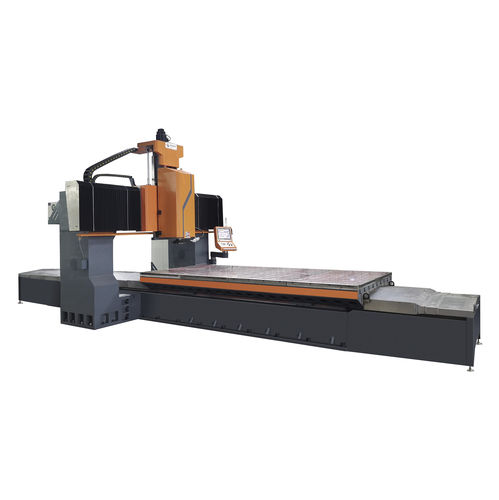

Gantry CNC milling machine VM-2340NC3-axisverticaldouble-column
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- gantry, double-column
- Machined material
- for aluminum
- Spindle mount
- BT 50
- Applications
- for the aeronautical industry, for the automobile industry, for large workpieces, for heavy-duty machining, for aluminum profiles, for sheet metal, optical
- Other characteristics
- high-speed, high-precision, high-rigidity, CE, with automatic tool changer
- X travel
4,000 mm
(157.48 in)- Y travel
2,300 mm
(90.55 in)- Z travel
700 mm
(27.56 in)- Power
15 kW
(20.39 hp)- Workpiece max height
700 mm
(28 in)- Work feed X-axis
Min.: 0 mm/min
(0 in/s)Max.: 8,000 mm/min
(5 in/s)- Work feed Y-axis
Min.: 0 mm/min
(0 in/s)Max.: 8,000 mm/min
(5 in/s)- Table load capacity
18,000 kg
(39,683 lb)- Weight
30,000 kg
(66,138.68 lb)- Overall length
9,087 mm
(357.8 in)- Overall width
4,100 mm
(161.4 in)- Overall height
3,300 mm
(129.9 in)
Description
Gooda gantry milling Machine, sales rank first in the industry!
【Hot Model】 VM-2340NC Gantry Milling Machine
Ultra-wide travel, worry-free processing of large workpieces!
Gear transmission, high rigidity spindle, stronger cutting force, high efficiency, milling instead of grinding
