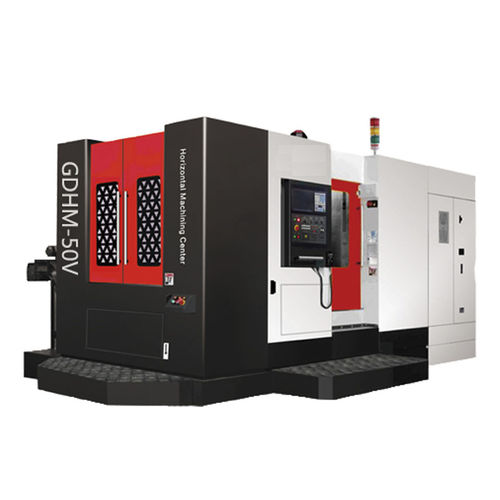

Horizontal CNC machining center GDHM-50VNC
3-axiswith rotary indexing tablefixed-bed

Horizontal CNC machining center - GDHM-50VNC - Dongguan Gooda Machinery Manufacturing Co., Ltd. - 3-axis / with rotary indexing table / fixed-bed
Horizontal CNC machining center - GDHM-50VNC - Dongguan Gooda Machinery Manufacturing Co., Ltd. - 3-axis / with rotary indexing table / fixed-bed
Horizontal CNC machining center - GDHM-50VNC - Dongguan Gooda Machinery Manufacturing Co., Ltd. - 3-axis / with rotary indexing table / fixed-bed - image - 2
Horizontal CNC machining center - GDHM-50VNC - Dongguan Gooda Machinery Manufacturing Co., Ltd. - 3-axis / with rotary indexing table / fixed-bed - image - 3
Horizontal CNC machining center - GDHM-50VNC - Dongguan Gooda Machinery Manufacturing Co., Ltd. - 3-axis / with rotary indexing table / fixed-bed - image - 4
Horizontal CNC machining center - GDHM-50VNC - Dongguan Gooda Machinery Manufacturing Co., Ltd. - 3-axis / with rotary indexing table / fixed-bed - image - 5
Horizontal CNC machining center - GDHM-50VNC - Dongguan Gooda Machinery Manufacturing Co., Ltd. - 3-axis / with rotary indexing table / fixed-bed - image - 6
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
horizontal
Structure
with rotary indexing table, fixed-bed
Machined material
for steel
Spindle mount
BT 40
Number of tool stations
24 tools
Associated functions
milling, drilling
X travel

1,330 mm
(52.36 in)

Y travel

600 mm
(23.62 in)

Z travel

600 mm
(23.62 in)

Power

11 kW, 15 kW
(14.96 hp, 20.39 hp)

Table load capacity

300 kg
(661 lb)

Tool weight (max)

7 kg
(15.4 lb)

Positioning accuracy

0.01 mm
(0.00039 in)

Repeatability

0.006 mm
(0.00024 in)

Tool-changing time

1.8 s

Weight

5,000 kg
(11,023.11 lb)

Overall length

3,200 mm
(126 in)

Overall width

2,800 mm
(110.2 in)

Overall height

2,800 mm
(110.2 in)

Description

GDHM-50VNC GooDa CNC Horizontal Machining Center The Features · One clamping can realize complex processing in four sides and multiple processes, with strong processing capacity, wide application range and high price "Bed casting is made of resin sand molding,HT300 strength inoculated cast iron Than high · The main castings of the bed body (base, workbench, column, saddle, headstock, etc.) are made of resin sand · It is suitable for multi-variety processing of complex box parts with holes and high coaxiality requirements in the process of processing The Advantages · Design the structure of the one-piece bed, use the finite element analysis to optimize the reasonable reinforcement arrangement and match the M-shape · Large inertia feeding servo motor, high rigidity ball screw and guide rail, good stability and high precision. · The reinforcement makes the column and the bed integrated, the performance indexes of each component are guaranteed, and the bed has high rigidity.
