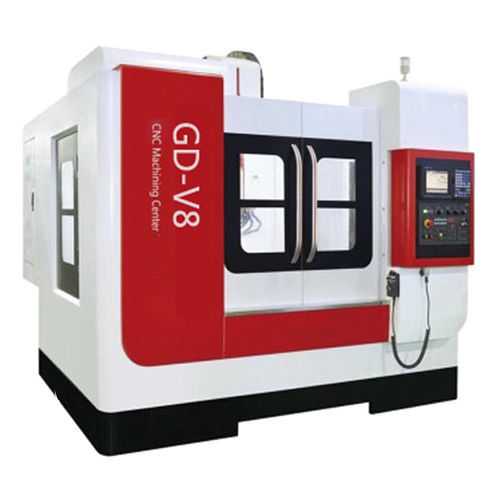

Vertical CNC machining center GD-V8
3-axiswith rotary tablecolumn type

vertical CNC machining center
vertical CNC machining center
vertical CNC machining center
vertical CNC machining center
vertical CNC machining center
vertical CNC machining center
vertical CNC machining center
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Structure
with rotary table, column type
Machined material
for aluminum, for steel
Spindle mount
BT 40
Number of tool stations
24 tools
Associated functions
milling, cutting, drilling
Applications
for molds
Other characteristics
high-speed, high-precision, CE
X travel

800 mm
(31.5 in)

Y travel

500 mm
(19.69 in)

Z travel

520 mm
(20.47 in)

Rotational speed

10,000 rpm
(62,832 rad.min-1)

Power

7.5 kW, 11 kW
(10.2 hp, 14.96 hp)

Table load capacity

550 kg
(1,213 lb)

Tool weight (max)

7 kg
(15.4 lb)

Positioning accuracy

0.01 mm
(0.00039 in)

Repeatability

0.006 mm
(0.00024 in)

Tool-changing time

1.8 s

Weight

4,900 kg
(10,802.65 lb)

Overall length

1,250 mm
(49.2 in)

Overall width

2,650 mm
(104.3 in)

Overall height

2,600 mm
(102.4 in)

Description

GOODA GD-V8 is a fixed-column vertical machining center machine tool, it has mechatronics design and stylish look. It cuts precisely, after the workpiece is clamped once, the machine tool can automatically and continuously complete the processing of multiple processes such as milling, drilling, boring, expanding, reaming, countersinking, and tapping. The Features GOODA Vertical machining center has mechatronics design and stylish look. It cuts precisely, after the workpiece is clamped once, the machine tool can automatically and continuously complete the processing of multiple processes such as milling, drilling, boring, expanding, reaming, countersinking, tapping and so on. The Advantages GOODA machining Center adopts column-fixed and cross-sliding table moving structure. X/ Y/ Z axis adopt linear rolling guide, the whole machine has high rigidity, high stability and high reliability. The large-flow fully enclosed protection has beautiful appearance, convenient operation and maintenance.
