Vertical CNC machining center GDVL-1370NC
3-axiswith rotary tablecolumn type

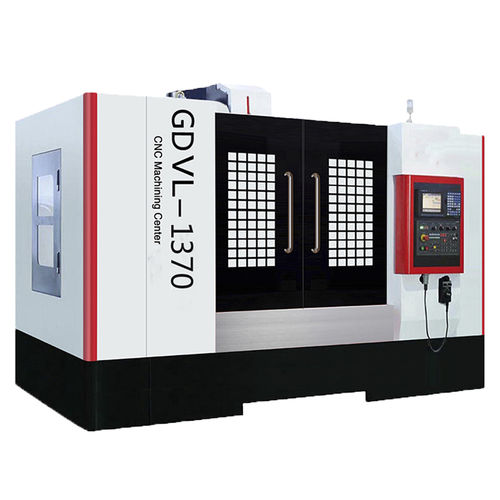

Vertical CNC machining center - GDVL-1370NC - Dongguan Gooda Machinery Manufacturing Co., Ltd. - 3-axis / with rotary table / column type
Vertical CNC machining center - GDVL-1370NC - Dongguan Gooda Machinery Manufacturing Co., Ltd. - 3-axis / with rotary table / column type
Vertical CNC machining center - GDVL-1370NC - Dongguan Gooda Machinery Manufacturing Co., Ltd. - 3-axis / with rotary table / column type - image - 2
Vertical CNC machining center - GDVL-1370NC - Dongguan Gooda Machinery Manufacturing Co., Ltd. - 3-axis / with rotary table / column type - image - 3
Vertical CNC machining center - GDVL-1370NC - Dongguan Gooda Machinery Manufacturing Co., Ltd. - 3-axis / with rotary table / column type - image - 4
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Structure
with rotary table, column type
Machined material
for aluminum
Spindle mount
BT 40
Number of tool stations
24 tools
Associated functions
milling, tapping, drilling
Applications
for molds, medical, optical
Other characteristics
high-precision, CE
X travel

1,300 mm
(51.18 in)

Y travel

700 mm
(27.56 in)

Z travel

670 mm
(26.38 in)

Rotational speed

10,000 rpm
(62,832 rad.min-1)

Power

11 kW, 15 kW
(14.96 hp, 20.39 hp)

Work feed X-axis

10,000 mm/min
(7 in/s)

Work feed Y-axis

10,000 mm/min
(7 in/s)

Table load capacity

1,000 kg
(2,205 lb)

Tool weight (max)

7 kg
(15.4 lb)

Positioning accuracy

0.01 mm
(0.00039 in)

Repeatability

0.006 mm
(0.00024 in)

Tool-changing time

1.8 s

Weight

9,500 kg
(20,943.91 lb)

Overall length

3,820 mm
(150.4 in)

Overall width

3,170 mm
(124.8 in)

Overall height

2,800 mm
(110.2 in)

Description

GDVL-1370NC is a fixed-column vertical machining center machine tool, it has mechatronics design and stylish look. It cuts precisely, after the workpiece is clamped once, the machine tool can automatically and continuously complete the processing of multiple processes such as milling, drilling, boring, expanding, reaming, countersinking, and tapping. This machine is suitable for the multi-variety processing of complex parts such as medium and small boxes, plates, plates, shells, etc. It is widely used in auto parts, valves, engineering machinery, IT equipment, optical equipment, medical equipment and aviation Aerospace and other industries.
