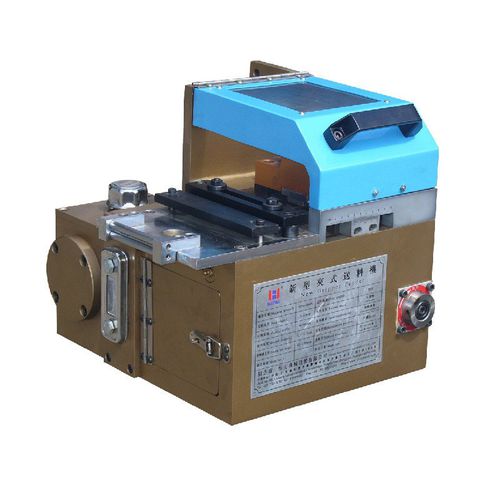

Automatic feeding system GS series

for production linesmaterial

High speed gripper feeder, automatic feeding of 0.1-1.5mm materials (feeding speed up to 1200 times/min), suitable for high-speed punching with high-speed press punching machines, such as terminal punching and small electronic parts production lines. Features: 1. The feeding method of uninterrupted conveying coil material is suitable for high-precision stamping processing production. The production speed can reach 1200 times per minute, which significantly improves production efficiency. 2. The main structure of the machine is designed in one piece, which can effectively avoid the impact of feeding accuracy due to resonance during high-speed stamping. 3. Step adjustment adopts scale adjustment. The operation is intuitive and clear, easy to learn, and the operator can easily adjust to the required feeding length. 4. The whole machine adopts belt drive. The mechanical parts are very quiet when running, which will not increase the noise pollution in the factory. 5. Adjust the appropriate clamping force according to the characteristics of the coil material. With stable action, it will not cause any indentation or deformation on the surface of the material. Stamping enterprises that are sensitive to materials such as stamped and electroplated materials, red copper, aluminum alloys, alloys, or secondary processing, can obtain high-quality stamped products. 6. Simple installation, fast adjustment and easy operation. The length of feeding can be adjusted during continuous stamping. Advantage: 1. Thickness adjustment only needs to be rotated according to the thickness of the material. Function: high speed feeding Material width:00-150 mm Material thickness: 0.1-1.5mm
