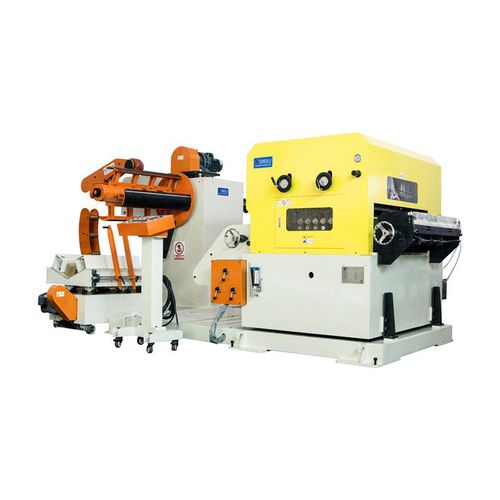

Sheet metal straightener-feeder NCHL series

Material:Cold rolled sheet, hot rolled sheet, pickled sheet, galvanized sheet, stainless steel sheet, copper, aluminum Material Thickness：1.0 ～ 8.0 mm Note: Please refer to the correction ability table for thickness x width. Material Width：100 ～ 1800 mm Yield Strength ：≤385 N/mm2 Coil Inner Diameter:Φ450~φ530mm/φ480~φ530mm/φ580~φ630mm Coil Outside Diameter:max φ 1600 mm Coil Weight:3000~15000kg Standard accessory: 1.Electric eye loop control system 2.Outgoing catenary to assist and support the material 3.Hold down arms device 4.Hold up arm for sheet feeding in 5.Feeding line easily adjusts by advance worm gear screw jacks device 6.Leveling setting wheel with meter panel 7.The uncoiler contain the butterfly brakes air compressor 8.Uncoiler-inverter device 9.Feed and staightener rolls with a hard chrome finished 10.Up and down device for feeding in sheet loop 11.Coil tip flattness device 12.Coil holding arms
