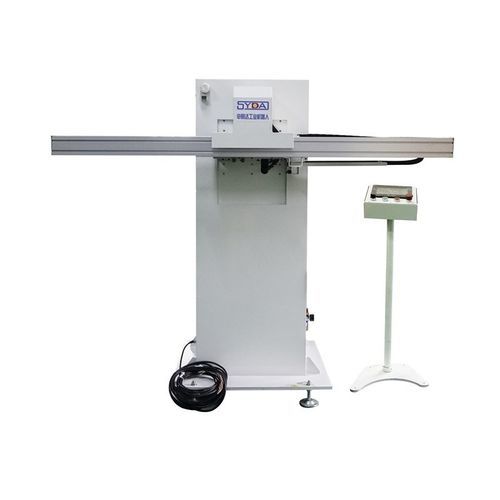

Profile transfer system S2RA series

for aluminum plateplatefor stainless steel

1. Using the overall lifting and lateral movement of the profile main rod to realize the take-out of materials between the molds; 2. The equipment adopts high-precision AC servo motor and PLC control system to accurately transfer products with punching die and secondary positioning center station; 3. The feeding arm can adopt various forms such as suction cup/electromagnet/claw; 4. It can be used in single station or multi- -station of single press, or it can be pro-duced by multiple presses. Size range of square material Length: 20mm ~ 350mm Width: 20mm ~ 250mm Round material size range Diameter: ￠ 20 ~ ￠ 250 Maximum weight of a single product: less than 4KG Effectiveness About 10 ~ 15 pcs / m. Power supply 2.5KW The 3-in-1 NC straightening feeder cooperates with the translation manipulator to achieve the full automation effect. The entire set of automation equipment is our own technology, independent research and development, and independent production. The control system can be seamlessly connected, efficient and stable, avoiding the incompatibility of operating systems of different brands to reduce subsequent maintenance costs.
