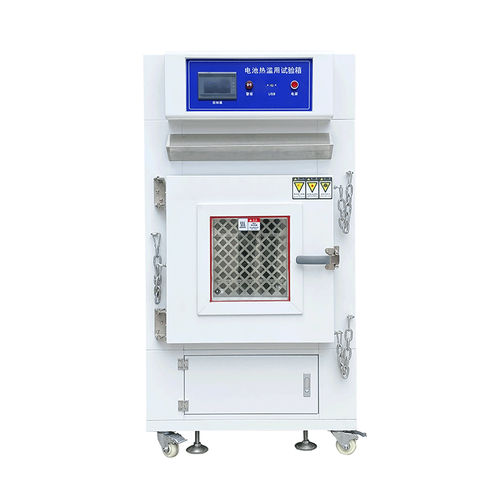

Thermal abuse test chamber

temperaturefor the aeronautical industryfor battery

Battery heat abuse test box, mainly in the automotive, aerospace, transportation, electronic products and other industries, these industries are faced with a short period of high temperature conditions, so the battery requirements are higher, requiring the battery to withstand high temperature without fire and explosion, battery heat abuse test box can be a good test whether the battery is qualified, but also greatly reduce the daily use of battery safety risks. Test purpose: The battery heat abuse test chamber is to simulate the battery is placed in a high temperature chamber with natural convection or forced ventilation, and heats up to the set test temperature at a certain heating rate and maintains a certain time. The hot air circulation system can ensure the uniform distribution of operating temperature. Test method description: After the battery is fully charged according to the prescribed test method, the battery is placed in the test chamber, and the test chamber is heated at the temperature rise rate of (5±2)℃/min. When the temperature in the chamber reaches 130℃±2℃, the temperature is kept constant for 30min, and the battery should not burst into flames or explode. Security protection system: 1, overtemperature protection system: when the temperature is out of control, exceeds the set temperature of the overtemperature protector, automatically stop heating and power supply, so as to protect the safety of your products and machines; 2, circuit protection: grounding protection, fast insurance, break switch, etc.
