Material thickness measuring instrument

contact angledigitalcamera

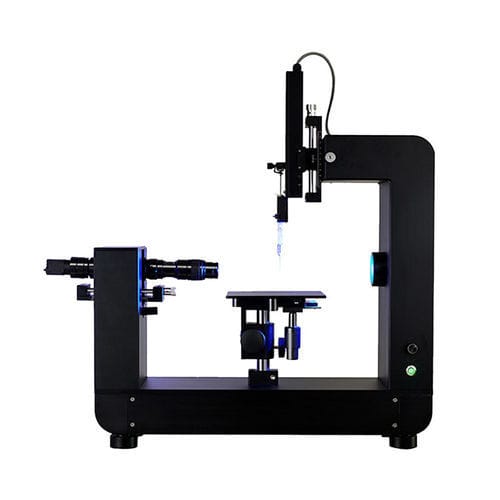

It is mainly used to measure the contact angle of liquid to solid, that is, the wettability of liquid to solid. It can also be used to measure The external phase is the contact angle of the liquid. This instrument can measure the contact angle of various liquids on various materials. In the fields of mobile phone manufacturing, glass manufacturing, surface treatment, material research, chemical engineering, semiconductor manufacturing, coating ink, electronic circuit, textile fiber, medical biology and other fields, contact angle measurement has become an important instrument for evaluating surface properties. The instrument is manufactured with modern technology. The instrument adopts advanced special-purpose CMOS digital camera with high-resolution continuous zoom microscope and industrial light source with high brightness and good stability. It is equipped with a three-dimensional sample stage, which can perform up and down, left and right, front and back of the workbench, etc. direction to move. Realize micro-sampling and precise movement up and down, left and right. At the same time, a telescopic rod structure workbench is also designed, which can adapt to the occasions where the material thickness of different users is increased. The frame of the instrument can be adjusted according to the size of the pattern, which expands the scope of use of the instrument. The software is equipped with a correction function, and the results after multiple tests can be saved in the same report at the same time, allowing users to better manage and control material data.
