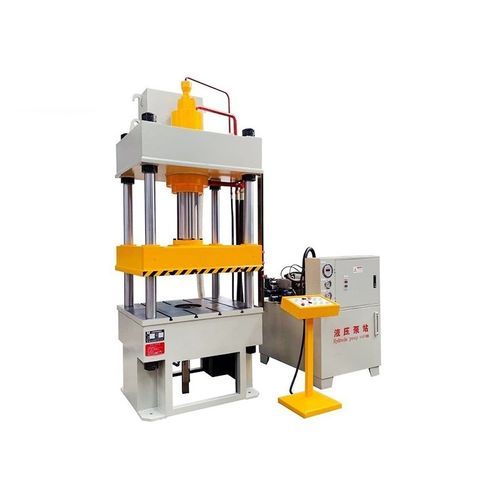

Hydraulic press HJ serieselectricformingstamping
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic, electric
- Function
- forming, stamping, bending, drawing
- Structure
- four column
- Control
- semi-automatic
- Other characteristics
- hot, digital
- Applications
- process, for plastics
- Force
2,500 kN, 3,150 kN, 4,000 kN, 5,000 kN
- Opening
Max.: 1,600 mm
(63 in)Min.: 900 mm
(35 in)- Stroke
500 mm, 600 mm, 700 mm, 1,000 mm
(19.685 in, 23.622 in, 27.559 in, 39.37 in)- Max. pressure
28 MPa
- Working speed
Max.: 16 mm/s
Min.: 5 mm/s
- Return speed
68 mm/s, 71 mm/s, 74 mm/s, 80 mm/s
- Approaching speed
60 mm/s, 70 mm/s, 90 mm/s, 100 mm/s, 120 mm/s
- Hydraulic pump power
15 kW, 18.5 kW, 30 kW
Description
This series of hydraulic presses are suitable for the pressing process of metal materials, such as stamping, bending, forming, extrusion, sheet drawing and pressing of powder products, and can also be used for hot pressing of plastic products. With independent hydraulic pump station and electrical control system. The hydraulic control adopts a cartridge valve integrated system. The oil pressure is displayed by a digital display electric contact pressure gauge, and the upper limit of the oil pressure can be set within the allowable range as required. The electrical system is centrally controlled by buttons, and has two operating modes: jog and semi-automatic. The working pressure and stroke can be adjusted within the specified range as required, and two molding methods of constant pressure and fixed stroke can be completed.
