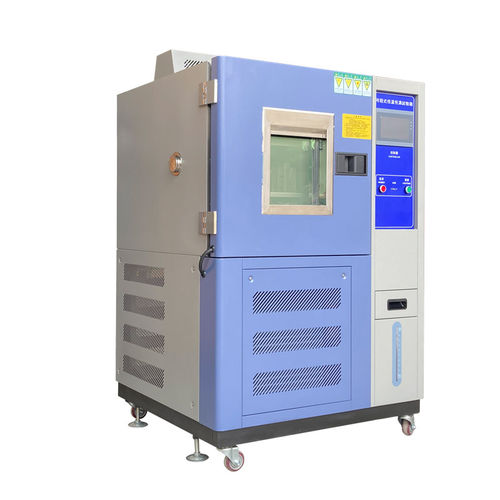

Temperature test chamber TH series

heatingfor electrical equipmentfor vehicles

High and low temperature test box, used to test the performance of materials in various environments and test the heat resistance, cold resistance, dry resistance and moisture resistance of various materials. Suitable for electronic, electrical, mobile phone, communication, instrument, vehicle, plastic products, metal, food, chemical, building materials, medical, aerospace and other products testing, quality. (2) the range of humidity: 20% ~ 98% R.H. (10% ~ 98% R.H.) (5% ~ 98% R.H. for special use conditions) (3) Analytical accuracy/distribution accuracy of temperature and humidity: 0.1℃ 0.1%R.H./ +2.0℃ +3.0%R.H. (4) Temperature and humidity control accuracy: ±0.5℃ ±2.5%R.H. (5) Rise/fall time: temperature rise is about 4.0° C/min; Cooling is about 1.0℃/ min (6) Material: the inner and outer boxes are made of SUS304# stainless steel plate (optional baking paint); Insulation material: high temperature resistance and high density chlorinated ethyl formate foam insulator material. (7) Power supply: AC220V 50/60HZ&1 (8) Accessories: built-in glass door for hole (optional), recorder (optional), viewing window, 50mm test hole, PL box light, partition, wet and dry ball gauze, casters, horizontal tripod. (9) Protection safety device: no fuse switch, compressor overload protection, refrigerant high and low pressure protection, high humidity and high temperature protection, fuse, fault warning system, water shortage alarm protection.
