Electric testing machine

currentleakautomatic

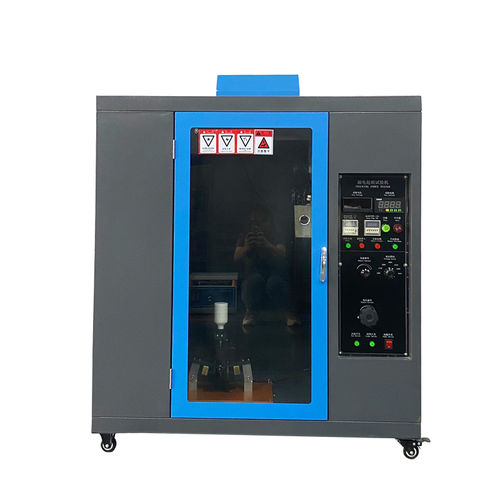

lectric Current Leakage Test Detector/Tracking Index Tester Wire Leakage Test Machine To Evaluate Leakage Resistance Short Description: Electrical and electronic products are affected by moisture and impurities, leakage may occur between charged bodies of different polarities or between charged bodies and grounded metals, and arcs may cause breakdown and short circuit of electrical and electronic products, or electrical corrosion of materials due to discharge, or even start. ignite causing a fire. The tracking tester is suitable for a destructive test of insulating materials to simulate the above conditions, to measure and evaluate the relative tracking resistance of insulators under the action of electric field and impurity-containing water under the specified voltage. The tracking tester meets the requirements of IEC60695, IEC60112, UL746A, ASTMD3638, GB4207, GB4706 and other standards Timing device - 9999X0.1s Drip interval - adjustable Drip height - 30～40mm Drip delay - 0.2S (solenoid valve opening time) Drop size - 45～50 drops/cm3 Electrode Specifications - 5±2mm Electrode spacing - 4±0.1mm Electrode pressure - 1±0.05N Electrode angle - 60° Closed circuit pressure drop - 8%MAX Short circuit current - 1±0.1A 1% Test voltage range - 100～600V 1.5% Electrical parameters - 1KW/220VAC/40-60Hz Working volume - >0.5 M3 Delay circuit - 0.2±0.1S (at 1.0A) 29±0.1S (after finishing the number of times) Standards compliant - IEC60695, IEC60112, UL746A, ASTMD3638, GB4207, GB4706
