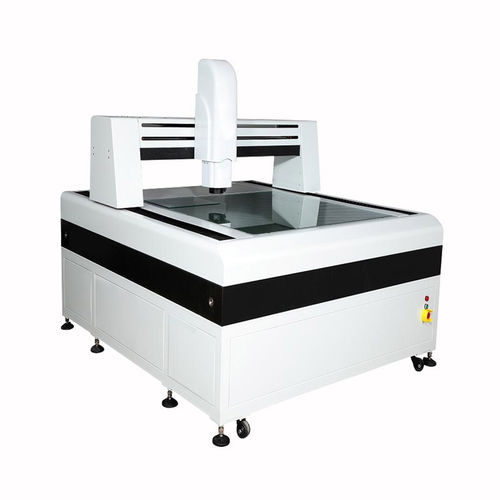

Size measuring instrument

positionangleoptical

The high-speed, high-precision, and powerful professional-grade automatic image measuring instrument of automatic imaging technology can realize precise measurement of the contour, apparent size, angle and position of various complex and precise parts. The best choice, with automatic software, can realize automatic programming, based on CAD digital-analog measurement, it is a fully automatic imaging instrument for high-end applications in China. Features 1. Professional measurement software, with fast auto focus, automatic edge finding, automatic measurement functions, as well as multiple coordinate functions, the workpiece can be placed at will, the software also has 3D height measurement, flatness, warpage and other measurement functions, measurement Data can be imported into Word, Exce/AutoCAD. 2. Adopt mobile bridge structure design, wide space, suitable for measuring large size products. 3. The machine adopts flower table structure, which has good stability, temperature resistance and corrosion resistance. 4. Adopt German open metal grating ruler, with high precision and good stability. 5. The three axes use Taiwan precision linear guides and screw rods. 6. It can be equipped with automatic zoom optical lens to realize automatic zoom measurement.
