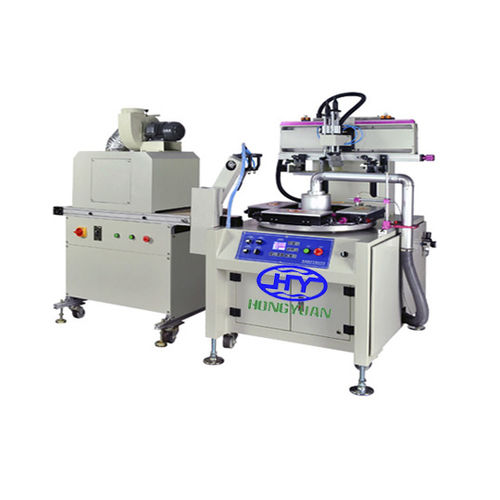

Automatic screen printer GW-2030-R1, GW-2030-R2

monochromevacuum

Automatic Stationery Ruler ,Protractor , Triangle ruler Screen Printing Machine Application: This kind machine is high precision rulers screen printing machine,with high speed rotary worktable, can run in high speed without any vibrations.Manual feeding,auto discharding,During printing process,you can put or take off the products,reduce machine down time.Max.printing speed can be up to 2500PCS/Hr,mainly applied to printing rulers, equilateral triangles rulers, Delta rulers, Protractor etc stationery products in large quantities Function: 1.Speed cam splitter architecture rotary wortkable 2.Adopts Taiwan LSK linear Guide, assure the machine with high precision 3.Worktable can be adjusted slightly, you can adjust on X.Y direction, adjustment precision up to 0.01MM 4.High strength large capacity vacuum tube adsorption 5.Various stationery rules does not require making jigs, quick change 6. No product,no print 7.Manual loading,automatic discharging,UV drying system 8. LCD control panel, multiple print mode selection, operation is simple and convenient 9. Full-cast aluminum body, metallic paint 9. Left and right stroke can be adjustable,Taiwan Photoelectric switch limit 10.Squeegee/blade angle can be adjusted freely 11. Screen frame position can be adjusted front and back ,left and right,up and down 12. Up and down,Left and right are equipped with Taiwan CEC oil buffer to eliminate printing vibrations 13. The whole machine runs fastly, smooth, noiseless Technical parameter: Max.printing area:200*300mm Max.printing speed:2200PCS/Hr Worktable size:250*450mm Max.frame size:300*500mm Left and right stroke:350mm Up and down stroke:100mm Disc size: 600mm
