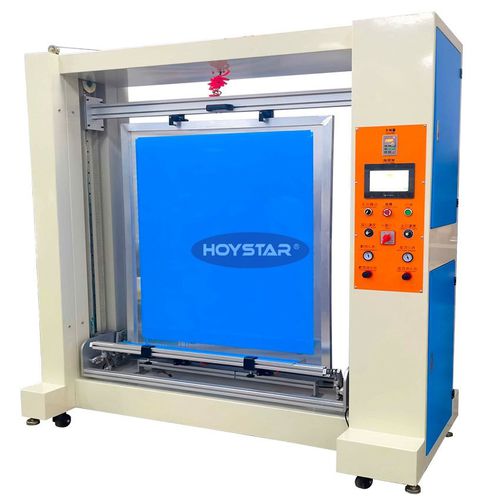

Automatic coating machine GW-1000TB

emulsionfor screen printing frames

Technical parameters: 1) Max. Frame Size：1200×1200mm 2) Voltage：220V 3) Total power：0.75KW 4) Consumption：1KW 5) Gross weight：250kg 6) Outer Dimensions (W×D×H)：2100mm×1900mm*70mm 7) Film thickness uniformity： ±1um Characteristic: The fully automatic emulsion coating machine is suitable for the coating of large-area, high-precision, and high-density screen sensitive emulsions in the screen printing industry and electronic circuit board industry. The fully automatic screen emulsion coating machine overcomes the instability of manual coating technology and uneven coating, ensuring the uniformity and consistency of each emulsion. Feature: 1. Specially used for high-precision, high-density, and photosensitive emulsion coating of large area screen printing. 2. The entire machine can be set for fully automatic operation through the control panel, and high-quality precision screen printing can be produced without the need for skilled technicians. It also comes with a single action adjustment function. 3. The coating thickness can be controlled by setting the coating pressure and coating frequency. 4. You can choose to apply one side separately or both sides simultaneously. 5. You can choose to apply in the normal upward or special downward direction, and the bidirectional speed can be adjusted continuously. 6. The clamping and unlocking actions of the frame are controlled by a foot switch to execute the pneumatic fixture, facilitating the use of both hands to support the frame.
