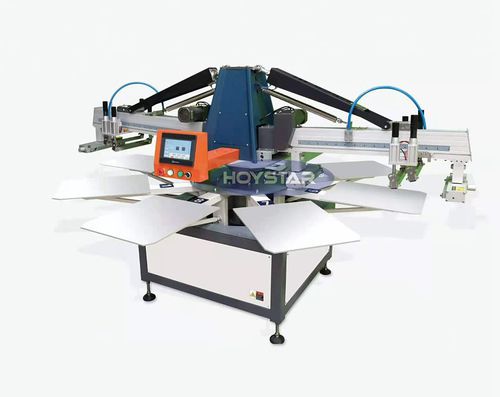

Automatic screen printer GW-2C-8S

2-colorfor textiles

Automatic 2 Color 8 Stations Electric T-Shirt Screen Printing Machines Application: these series is the multifunctional automatic screen printers. With intellegent micro-processor, touch screen and motor driven system equipped, it brings into high printing stability and colors registration tolerance up to ±0.1mm. All parts of the machine body are tested precisly before installation, ensuring minimal maintenance and easy operation. The automatic screen printer must be your ideal printer in printing industry. Features: 1. Motor driven and high-tech system built in 2.Turntable Rotates freely for high positioning nice registration. 3.Print/flood speeds adjusted electrically 4.Print pressure, print strokes , and it angle are adjustable. 5. The movable dryer can be put inside of any print stations as necessary Technical Parameter: 1.Max. Image Area：400×400/mm 2.Pallet Size：420×500/mm 3.Frame Size：500×700/mm 4.Air Source ：≥0.8 Mpa 5.Max.air Consumption：24.71L/100mm 6.Max.Output ：700pcs/h 7.Power ：2.0KW 8.Machine size: φ2500mm 9.Weight: 800KG
