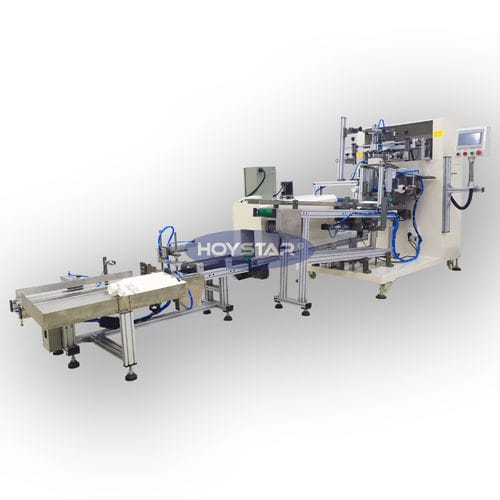

Automatic screen printer GW-2A-A

fully-automaticmonochromefor plastic cups

Full Automatic 1 Color Cups Cylindrical Screen Printing Machine Application: This machine is specially designed for printing the cups,it is full automatic machine,it is auto feeding--auto printing--auto drying--auto unloading. Automatic positioning of paper cup seam. Automatic stacking. Automatic counting. Technical parameter: 1. Max.printing speed: 1500pcs/Hr 2. Power: 220V 50-60MHZ 3. Air pressure: 5-7bar 4. Loading mode: Automatic 5. Unloading mode: Automatic 6. Drive mode of rotary table: Electric 7. Transeversa driving style: Pneumatic 8. Transeversa stroke: 350mm 9. Max.printing area: 300mm(the length of circumference and cambered surface)*150mm (width) 10. Max printing diameter: ￠100mm 11. Max length of products: 200mm Feature: 1. Fully automatic, no need person to operate 2. Locating automatically to keep printing precision 3. No product without printing system, keep printing stable 4. High and strong vacuum system, keep printing precision 5. PLC and touching screen control system. Digital control system,can set parameter randomly,operate easily with big function 6. The four angle of screen frame holder can be adjusted, keep the balance between screen frame and worktable, also make sure the layer of printing ink is even 7. Printing angle, printing pressure and screen distance are easy to set. The change of squeegee and flood bar is controlled by precision guide, keeping the vertical precision, working smoothly 8. With emergency switch to keep safe and stable 9. Locating several workstations by Taiwan precision rotary locating with stable, fast, improving efficiency 10.The loading system is rotary type. like this,it can save time
