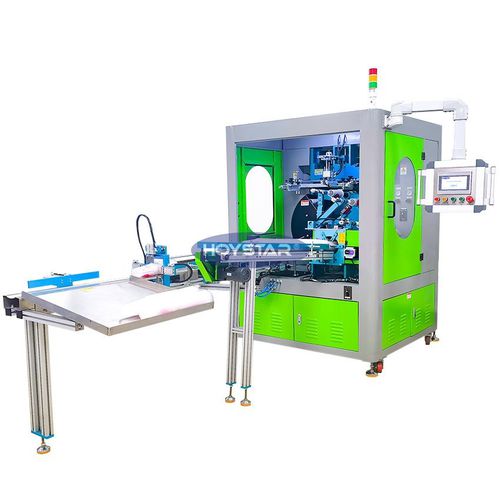

Fully-automatic screen printer GW-2A-M

multi-colorfor plastic cupsfor cylindrical products

1. Fully automatic, no need person to operate 2. Locating automatically to keep printing precision 3. No product without printing system, keep printing stable 4. High and strong vacuum system, keep printing precision 5. PLC and touching screen control system. Digital control system,can set parameter randomly,operate easily with big function 6. The four angle of screen frame holder can be adjusted, keep the balance between screen frame and worktable, also make sure the layer of printing ink is even 7. Printing angle, printing pressure and screen distance are easy to set. The change of squeegee and flood bar is controlled by precision guide, keeping the vertical precision, working smoothly 8. With emergency switch to keep safe and stable 9. Locating several workstations by Taiwan precision rotary locating with stable, fast, improving efficiency 10.The loading system is rotary type. like this,it can save time Technical parameter: 1) With Corona treatment (before printing) 2) With LED UV curing (after printing) 3) Max.printing speed: 2500-3000pcs/Hr 4) Max printing diameter : ￠100mm 5) Max length of products: 200mm 6) Loading mode: Automatic 7) Unloading mode: Automatic 8) Drive mode of rotary table: Electric 9) Transeversa driving style: Pneumatic 10) Transeversa stroke: 350mm 11) Air pressure: 5-7bar 12) Power: 220V 50-60MHZ | 7KW 13) Machine size: 1.8*1.5*2.2m
