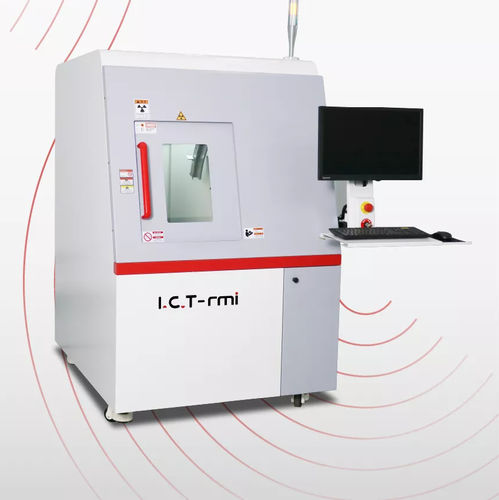

X-ray inspection machine X-7200

CNCfor the electronics industrymeasurement

I.C.T X-7200 inspection machine has a wide range of applications. It is commonly used in the internal structure testing of electronic components, common air bubble void rate measurement, circuit short circuit open circuit, solder joint lack of soldering and missing soldering, foreign matter cracks inside, etc. It has the characteristics of convenient maintenance and long service life; simple operation, reducing operator training; high repeatability of detection; allowing a maximum viewing angle of 60 degrees to detect samples and so on. Features： 1. CNC program: automatic batch detection of different positions of samples. 2. Array function: automatic batch detection of samples with fixed positions and the same spacing. 3. Length and width measurement: measure the length and width of part of the detection area. 4. Visual navigation interface: precise positioning of the detection position. 5. Simulate color: better observe the inspection image. 6. Bubble measurement: One-key measurement of bubble size, void rate, and tin climbing height. 7. Automatically ON/OFF X-RAY light tube to detect samples in batches. 8. Equipped with high stability and high precision X-ray light tube. 9. High-resolution digital X-RAY flat panel. 10. The stage can accommodate a large number of samples of various sizes. 11. Optional 360° rotation of the stage to detect samples. 12. Allows 60° tilt observation. 13. High safety, with EU CE Certificate, International Quality Management System ISO, and AERB Certificate for X-ray.
