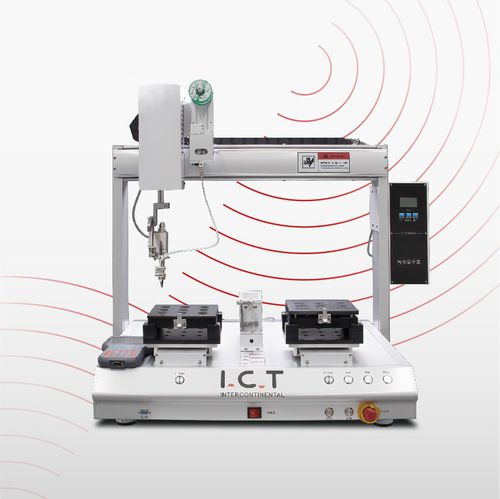

Robotic soldering machine I.C.T-SR250D

spothigh-frequencyautomatic

I.C.T Pcb Smd 5-Axis Desktop Robotic Soldering Robot Machine SR250D. Multi-axis linkage manipulators are all driven by precision stepping motors and advanced motion control algorithms, which effectively improve the precision and repeatability of motion positioning. Soldering Principle: Operation mode: Multi-axis drive manipulator and software control to achieve precise positioning of the welding head. Welding method: high temperature eddy current heating with a soldering iron. Working principle: Fix the soldering iron on the robot, move to the specified welding coordinates, and automatically feed the wire at the tip; The soldering iron is welded at high temperature and engaged with the target. Introduce： I.C.T soldering robot is a soldering robot with solering wire feeding motion system. high frequency heatig system with rapid heat recovery, soldering tip is easy to te exchanged with low cost .Break tin automatic solder wire feeder can reduce flux remaining problem after soldering. Product Features 1. Cost saving:High-efficiency operation is achieved by only one person.one person's efficiency amounts to 3-5 persons' efficiency. 2. X,Y,Z,R,and soldering wire feeding motion system are all controlled by one combined 5 axis motion control card with PC,so it can integrate all the functions into one software.it makes machine running more stable and easy to operate. 3. X,Y,Z,R axis adopt quality step motor with it's contorl system, make machine run smoothly and precisely . 4. It is equipped with automatic soldering tip cleaning device ,which can improve soldering quality and prolong lifetime of soldering tip.
