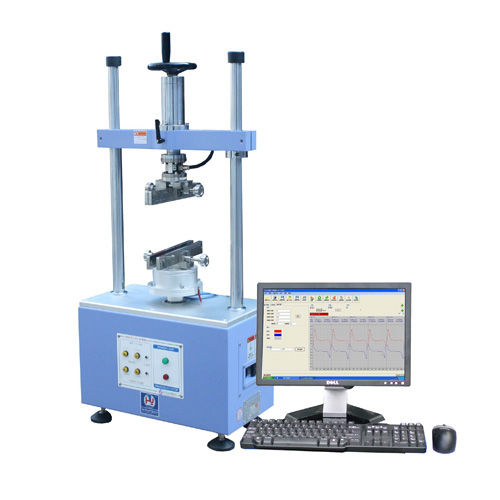

Torsion testing machine RS-6300D-A

automaticfor electronic products

This torsion tester is suitable for the torsion testing for all kinds of electronic products and the hinges. Can measure the torsion of positive rotation and reverse rotation, and have the software to create the curves of testing, and can record the testing data, the curves. Max testing torsion: 2N.m, 5N.m, 10N.m(optional) Min.display torsion: 0.01N.m Min.Angle display: 0.01° Rotation angle: No limit Testing speed range: 1-7200°/min(Meet Amazon requirement:1~2 sec reach 1.5N.m) Size: W420xD320xH1150mm Weight: 65kg Power supply: 1§,AC220V 5A or specify by customer • The testing conditions are set by computer (the angle testing range,the original point of storke,testing speed,testing cycles,the pause time, to hold the time for the testing and so on); • Can print and save the testing data and curves (Torsion vs angle, Torsion damping curve); • The title, products spec, testing date, operator, file No in the testing report are editable. • The testing chart is Microsoft Access editing format, input the testing data automatically and can save or print. • It can automatically judge the pass or failure for the testing according to the set upper and lower and lower limit value, and then create the current testing data, such as the Max torsion, Min torsion, Ave, value, ETC, and create the corresponding curves. • The torsion damping curve and report:to display torsion value changing vs the testing cycles increase. • To adopt the Panasonic servo motor for the driving, has the 2500R high pulse encoder, can make sure the right location precisely,and low noise, higher torque, can satisfy long time running.
