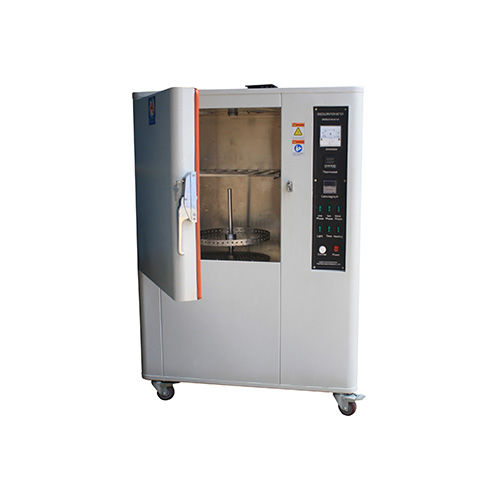

Solar simulation test chamber RS-8310A

radiation

Y-7215-A simulates the circumstances of sunshine radiation to test the resistance to discoloration of shoes’ materials. It’s appropriate for using in natural leather, synthetic leather, vulcanized rubber, PU as well as TPR fabric, sole as well as insole, white shoes’ material and etc. It’s the major facility in shoes and chemical factories for quality control and inspection. Model: RS-8310A Test standard: ASTM-D1148, HG/T3689 Light source: Sunlamp 1 pcs Specimen pan: ∅30cm (revolving) 3±1 rpm Temp.: Max. 120° Heating method: Hot-air circulation Heat serving material: Glass fiber Light irradiance: Adjustable Timer: LED, 0~999 hr, (hour, minute, second, changeable) Motor: 1/4 HP Interior dim (WxDxH)mm: W500xD500xH600mm Exterior dim (WxDxH)mm: W1000xD650xH1400mm Weight: 135 Kg Power: AC220V 50Hz 10A or specified by user
