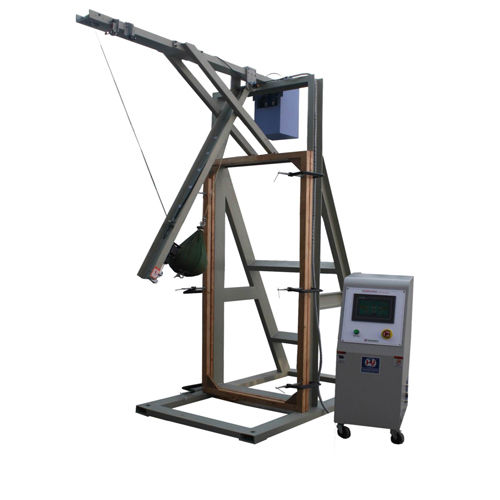

Impact testing machine RS-8220SDsemi-automaticfor glasspendulum
Add to favorites
Compare this product
Characteristics
- Test type
- impact
- Operating mode
- semi-automatic
- Test material
- for glass
- Other characteristics
- pendulum
Description
This tester is design according to the standard GB/T9962-1999- 6.11, It satisfys the Architecture laminated glass impact testing requirement.
Specification
Model: RS-8220SD
Impact way: Pendulum bob
Swing arm Radius: 1530mm
Impact height: 300~1200mm
Impact canister ’s weight: 45kg±0.1kg
The canister ball dia.: 2.5mm
Specimen size: H1930xW864mm
Inner size of Wooden Fixing frame: H1911xW845mm The part which contact the specimen is the rubber with hardness Shore 50 degree
Dimension(WxDxH): 1200x1800x2200mm
Weight: About 700kg
Power: AC220V 3A or specified by user
