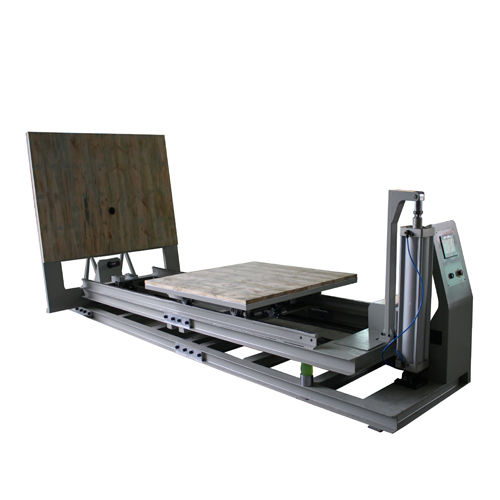

Impact testing machine RS-150-200

semi-automaticfor packaging

This machine is to evaluate the anti-impact strength in the process of shipping and carrying. Test Standard: 1.ASTM Stanard D 4169    Standard Practice for Performance Testing of Shipping Containers and Systems 2.ASTM Standard D 4332    Standard Practice for Conditioning Containers, Packages, or Packaging Components for Testing 3.ASTM Standard D 880  Standard Test Method for Impact Testing for Shipping Containers and Systems 4.ISTA 2A-2008  Packaged–Products 150 lb (68 kg) or Less 5.ISTA 2B-2008  Packaged–Packaged-Products Over 150 lb (68 kg) 6.ISTA3B-2009  Packaged–Products for Less-Than-Truckload(LTL) Shipment 7.ISTA3E-2009  Products or Packaged-Products in Mechanically Handled Bulk Transport Containers 8.Package, Transport Package and Unit Goods Stability Test Method 7.2.2.1 Declivitous Impact Test Specification  Max load:  200KG  Max size of Specimen:  Main technology parameters  Angle between Impact surface and Pathway:  90°±1°  Impact speed scope:  1.305~2.608m/s Diamension of Impact Plate:  W1900*H1400mm  Impact speed error:  ≤±5%(Slide length more than 700mm)  Max slide length:  2000mm(or customized)  Weight of Machine:  1950 kg  Max dimension of Specimen:  L1400xW1400xH1400mm  Weight of Machine: About 1950 kg  Powder:  AC220V 50Hz 1KVA Functions and Features • a) Flexible positioning electric pulley block is convenient to simply fix positions and achieve needed speed change values; • b) Low tackle height is beneficial for test specimen installation; • c) Tackle table-board can be adjusted to horizontal status, which is convenient for users to install test specimen; • d) Remote control can fully guarantee test personnel’s safety.
