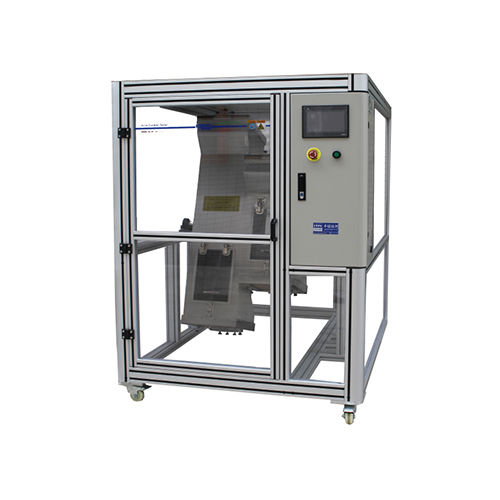

Electronic product drop tester RS-DP series
Add to favorites
Compare this product
Characteristics
- Applications
- for electronic products
Description
This tester is used for continuous rolling drop test for mobile, CD/MP3, PDA at etc.
Standard
IEC 60068-2-32, GB/T2423.8
Specification
Model:
RS-DP-12 (Economic type):
RS-DP-12A( Touching screen type+ AL outer frame)
Test amount: 2 sets or 4 sets
Drop width: 350mm
Drop Height: 500mm or 1000mm
Test speed: 5~20 times/min
Test cycle: 1~999999 times (can set)
Dimension (WxDxH):
1300x1200x1500mm
1250x1500x1680mm
Weight:
165 Kg
250 Kg
Power supply: AC 220V 50 Hz 5A or specified by user
Accessories
There are 2 barrels in the tester, 1 barrel with 0.5m height, and another barrel with 1.0m height.
