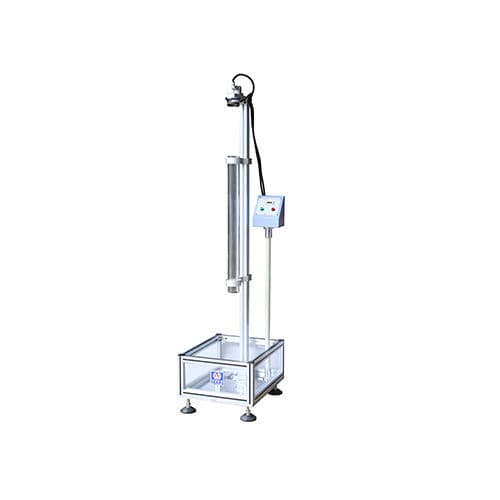

Impact testing machine RS-8220LQsemi-automaticfor glasselectromagnetic
Add to favorites
Compare this product
Characteristics
- Test type
- impact
- Operating mode
- semi-automatic
- Test material
- for glass
- Technology
- electromagnetic
- Other characteristics
- DC
Description
This tester is design according to the standard GB/T9962-1999-6.11. It satisfies the architecture laminated glass impact testing requirement.
Standard
JIS R 3205:1989, ISO/DIS12542.1, 12543-6:1997, AS/NZS2208:1996, GB/T9962-1999.
Model: RS-8220LQ
Impact height: 600~1500mm, adjustable
Impact steel ball: 1040g ± 10g (∅63.5 mm)
2260g ± 20g (∅82.5 mm)
Specimen size: 610x610mm
Steel ball falling direction: Vertically 90°±3° to the specimen
Counting cycles: 0~999999 times
Sucking way: DC electromagnetic sucker
Dimension (WxDxH): 1000x700x2000mm
Weight: About 300Kg
Power: 1φ AC 220V 5A or specified by user
