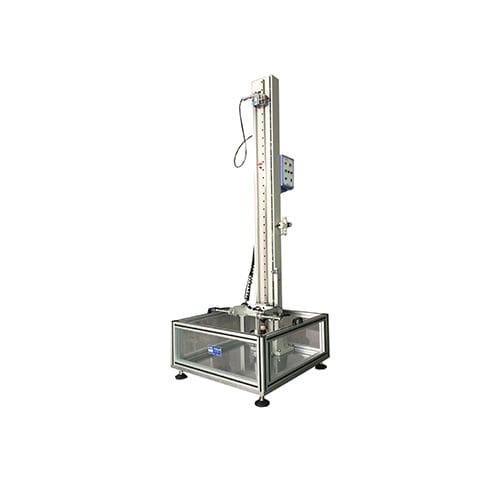

Electronic product drop tester RS-DP-03

This tester is used for dropping test for mobile, phone earphone, interphone, MP3, CD, electronic dictionary, and the other electronic devices or parts. For checking the device quality after N times free dropping off from a stated height and different side, corner and face. Model: RS-DP-03 Multi-angle dropping fixture: 0°, 45°, 90° Dropping height indicator: Scale indicator, 1cm Min Effective dropping height: 300~1800mm (optional 2000mm) Max tested weight: 2 Kg Dropping plate: Steel plate, cement floor, wooden plate Dropping area: 500x600mm Air pressure: ≥0.5 Mpa Dimension (WxDxH): 1000x1000x2350mm Main unit weight: 125 Kg Power supply: AC 220V 50 Hz 5A or specified by user Features • 1.Easy operation and good price. • 2.Adopt Japan SMC precision pneumatic component, move up and down by hands and there is a scale for indicating the height. • 3.The fixture hold the specimen drop together and release the specimen at about 300mm from the base to keep the expected specimen gesture drop onto the base so that can make sure that expected edges, sides and corners drop to the base. Than can help customer to improve the product’s design by the precise drop testing. • 4.Marble, steel plate, wood plate for dropping plate can be optional.
