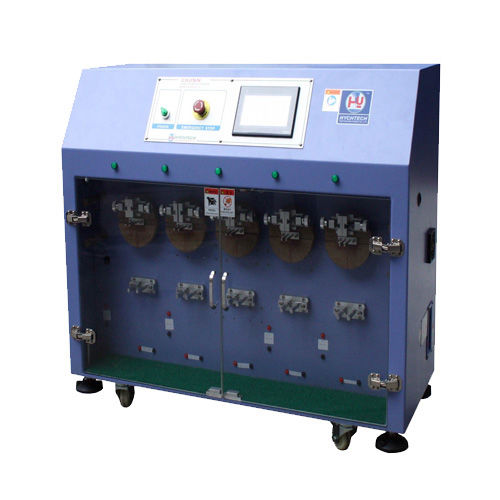

Bending tester RS-8105A-5

cable

It is suitable for bending test of earphone cable, USB cable, multi-core cable, communication cable,flat cable and signal cable. The test method is as follows:one end of the wire rod is short is short clamped, fixed on the rotating disc, and rotated left and left and right under a certain lifting load, so as to evaluate whether the wire rod has good conduction after N times of testing. Test Standard: EIA-364-41D cable flexing test procedure for electrical connectors. Specifications: Model: RS-8105A-5 Control system : It adopts Japan OMRON® touch screen and Mitsubishi® PLC, and each station works independenty Drive: Japan Panasonic® AC servo motor Test speed: 1~60cpm±2cpm Test angle range: Commonly 0~±90° or 0~±180°, rotation angle of concentric jig is not limited The least angle display: 1° Test cycles setting: 1~999999 cycles Batch tesidence time: 1~10 minutes Guide rod: R1.5-R12MM Diameter of rotating disc: 100mm Weight: 50g, 100g, 150g, 250g, 300g, 500g (all the six) Size of machine: W980xD460xH940mm Weight of machine: 185kg Power supply: AC220V 50HZ 10A Features: ●It is driven by Panasonic AC servo motor, with high precision, accurate positioning, low noise, and can be used for a long time ±180°, error: ±1°. ●The test conditions are all set by the touch screen: angle setting, speed, test times, measured times, roatation dwell time, After testing N times, stay for N minutes. ●Five cables can be tested at the same time. ●Each group is equipped with signal (conduction test) test line and indicator light, once the wire is broken (circuit signal cannot be formed), the current station indicator will be off and count will be stopped.
