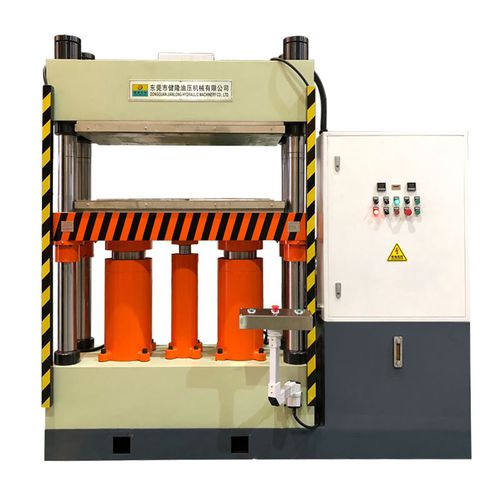

Hydraulic press JLA1 series
punchingformingveneer

hydraulic press
hydraulic press
hydraulic press
hydraulic press
hydraulic press
hydraulic press
Add to favorites
Compare this product


Characteristics

Operation
hydraulic
Function
forming, punching, embossing, veneer
Structure
frame
Applications
process
Force

400 kN, 500 kN, 600 kN, 2,000 kN, 3,000 kN

Max. pressure

19 MPa, 20 MPa, 24 MPa

Hydraulic pump power

5.5 kW, 11 kW, 15 kW

Weight

2 kg, 3 kg, 5 kg, 6 kg
(3 lb, 4 lb, 6 lb, 7 lb)

Overall length

Max.: 1,420 mm
(56 in)

Min.: 1,130 mm
(44 in)

Overall width

Max.: 1,550 mm
(61 in)

Min.: 950 mm
(37 in)

Overall height

Max.: 2,750 mm
(108 in)

Min.: 2,455 mm
(97 in)

Description

1. Adopt the whole welded frame type fuselage, the overall rigidity is good, high compressive strength 2. The use of imported servo motor, hydraulic control system, movable table up speed, high production efficiency 3. Flexible and convenient, the pressure, stroke and pressure time can be adjusted according to the pressing process requirements 4. High temperature resistant machine, equipped with safety electronic eye, safety protective cover, improve the hot pressing production safety index Technical features: 1. Adopt the whole welded frame type fuselage, the overall rigidity is good, high compressive strength 2. The use of imported servo motor, hydraulic control system, movable table up speed, high production efficiency 3. Flexible and convenient, the pressure, stroke and pressure time can be adjusted according to the pressing process requirements 4. High temperature resistant machine, equipped with safety electronic eye, safety protective cover, improve the hot pressing production safety index Scope of application: 1. Suitable for all kinds of plastic hot pressing and embossing, all kinds of composite sheets and new materials forming punching process; 2. Suitable for furniture factory, artificial board secondary processing technology; 3. All kinds of decorative materials: such as PVCX, veneer, sticker decorative cloth leveling, shaping process, etc. Dongguan Jianlong Hydraulic Machinery Co., Ltd. is located in the manufacturing city Dongguan. Headquartered in Liaobu Town, Dongguan City, the company has set up international business division, Guangxi, Shanghai, Hubei offices.,The company with integrity, strength and product quality to win industry recognition
