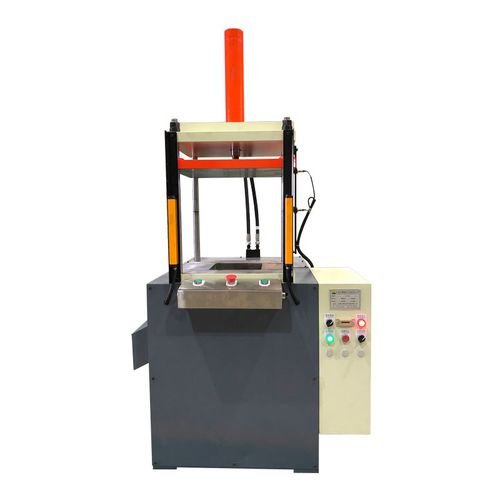

Hydraulic press JLA4 seriestrimmingfour column
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- trimming
- Structure
- four column
- Force
100 kN, 200 kN, 300 kN, 400 kN, 500 kN
- Opening
400 mm, 450 mm, 500 mm, 600 mm, 700 mm
(16 in, 18 in, 20 in, 24 in, 28 in)- Stroke
300 mm
(11.811 in)- Max. pressure
21 MPa
- Return speed
200 mm/s, 205 mm/s, 210 mm/s, 230 mm/s, 260 mm/s
- Hydraulic tank volume
150 l, 200 l, 250 l
(40 gal, 53 gal, 66 gal)- Weight
900 t, 1,020 t, 1,120 t, 1,650 t, 2,400 t
(992 us ton, 1,124 us ton, 1,235 us ton, 1,819 us ton, 2,646 us ton)- Overall length
Min.: 900 mm
(35 in)Max.: 1,340 mm
(53 in)- Overall width
850 mm, 900 mm, 1,100 mm, 1,150 mm
(33 in, 35 in, 43 in, 45 in)- Overall height
2,105 mm, 2,155 mm, 2,270 mm, 2,550 mm, 2,750 mm
(83 in, 85 in, 89 in, 100 in, 108 in)
Description
1. High efficiency and energy saving: Adopt imported motor and control system, fast conversion of child and mother cylinder, fast empty running degree, high efficiency and energy saving.
2. Quality assurance: Four columns made of high strength alloy steel, hard chrome plated surface, good wear resistance.
3. Flexible operation: pressure, stroke and pressure time can be adjusted according to the pressing process requirements.
4. Safe and convenient: the machine is equipped with protective cover, anti-fall device, blowing chip removal device, LED working light and infrared ray
Scope of application:
1. Applicable to all kinds of aluminum alloy, magnesium alloy die casting raw edge punching and shaping
2. It is widely used in die casting industry of aluminum magnesium alloy mobile phone products, automobile and motorcycle parts
2. Shaping and punching of metals or nonmetals.
