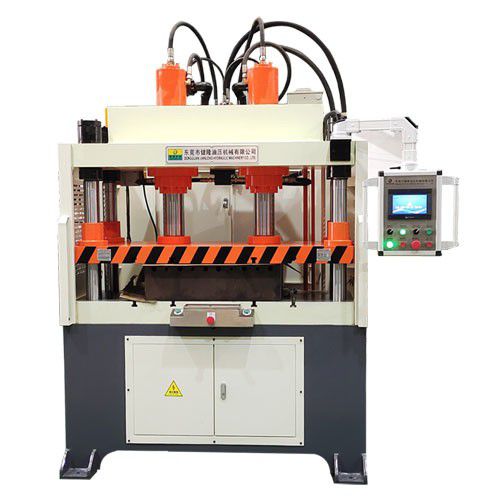

Hydraulic press JLA2 seriesformingdrawingstamping
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- forming, stamping, drawing
- Applications
- process, for sheet metal
- Force
2,000 kN, 3,000 kN, 5,000 kN, 6,000 kN
- Stroke
350 mm
(13.78 in)- Max. pressure
20 MPa, 24 MPa, 25 MPa
- Return speed
150 mm/s, 160 mm/s, 170 mm/s
- Hydraulic pump power
Min.: 7.5 kW
Max.: 23 kW
- Hydraulic tank volume
400 l, 450 l, 500 l, 800 l
(106 gal, 119 gal, 132 gal, 211 gal)- Weight
6 t, 15 t, 18 t
(7 us ton, 17 us ton, 20 us ton)- Overall length
Min.: 1,720 mm
(68 in)Max.: 2,850 mm
(112 in)- Overall width
Min.: 1,250 mm
(49 in)Max.: 1,850 mm
(73 in)- Overall height
Min.: 2,850 mm
(112 in)Max.: 3,100 mm
(122 in)
Description
1. Electrical case, computer main case, air conditioning case, refrigerator, decorative sheet metal stamping molding and other pressing process.
2. Metal or non-metal stamping, forming, shallow drawing, shaping and other pressing processes.
Technical features:
1. High efficiency: The use of child mother cylinder fast turn slow, empty line fast, high production efficiency.
2. Intelligent: imported hydraulic control system, pressure, stroke and pressure time can be adjusted according to the pressing process requirements.
3. Long service life: The use of servo motor imported from Italy, high frequency plus hard steel material, stable operation of the machine, long service life
4. Safety: The machine can be equipped with protective cover, fall prevention device, LED working light and infrared ray to improve the safety production index.
