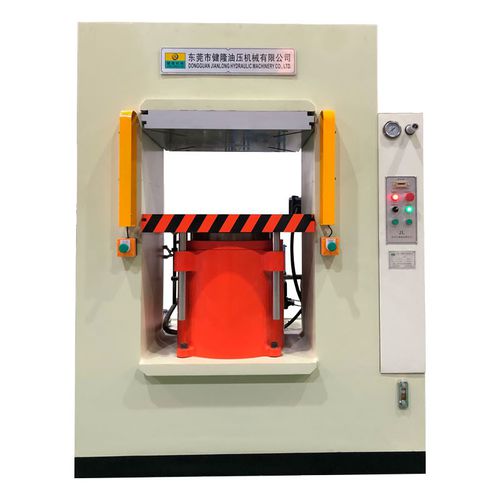

Hydraulic press JLK1 seriespunchingdrawingstamping
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- stamping, bending, drawing, punching
- Structure
- frame
- Other characteristics
- electronic
- Applications
- for production, process
- Force
Max.: 2,000 tf
Min.: 100 tf
- Opening
Max.: 700 mm
(28 in)Min.: 360 mm
(14 in)- Stroke
110 mm, 150 mm, 160 mm
(4.331 in, 5.906 in, 6.299 in)- Table width
Max.: 1,350 mm
(53 in)Min.: 420 mm
(17 in)- Table length
Max.: 1,350 mm
(53 in)Min.: 420 mm
(17 in)- Max. pressure
22 MPa, 24 MPa, 25 MPa
- Return speed
75 mm/s, 90 mm/s, 100 mm/s, 150 mm/s
- Approaching speed
80 mm/s, 90 mm/s, 135 mm/s, 180 mm/s
- Hydraulic pump power
Max.: 30 kW
Min.: 4 kW
- Overall length
Max.: 2,400 mm
(94 in)Min.: 925 mm
(36 in)- Overall width
Max.: 2,600 mm
(102 in)Min.: 750 mm
(30 in)- Overall height
Max.: 3,300 mm
(130 in)Min.: 1,650 mm
(65 in)
Description
1. Adopt integral welded frame type fuselage, overall rigidity is good, high compressive strength.
2. The use of imported servo motor, hydraulic control system, movable table up speed, high production efficiency.
3. Flexible and convenient, the pressure, stroke and pressure time can be adjusted according to the pressing process requirements.
4. The machine is equipped with safety electronic eye and safety protective cover to improve the production safety index.
Scope of application:
1. Case, watchband, glasses frame and tableware, signs, locks, auto parts and hardware parts pressing process.
2. Metal or non-metal stamping, shallow drawing, bending, flanging, shaping and other pressing.
3, household appliances, lighting, craft flower pot and other counterweight block molding;
4, metal products stamping, punching and stamping technology
