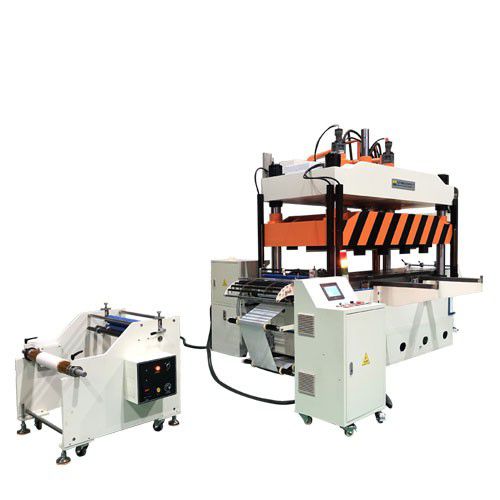

Hydraulic press JLA2 seriesformingdrawingstamping
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- forming, stamping, drawing, die-cutting
- Structure
- four column
- Applications
- process, for sheet metal
- Force
2,000 kN, 3,000 kN, 5,000 kN, 6,000 kN
- Stroke
350 mm
(13.78 in)- Max. pressure
20 MPa, 24 MPa, 25 MPa
- Working speed
8 mm/s, 10 mm/s
- Return speed
150 mm/s, 160 mm/s, 170 mm/s
- Hydraulic pump power
7.5 kW, 11 kW, 18.5 kW, 23 kW
- Hydraulic tank volume
400 l, 450 l, 500 l, 800 l
(106 gal, 119 gal, 132 gal, 211 gal)- Weight
6 t, 15 t, 18 t
(7 us ton, 17 us ton, 20 us ton)- Overall length
1,720 mm, 1,850 mm, 2,640 mm, 2,850 mm
(68 in, 73 in, 104 in, 112 in)- Overall width
1,250 mm, 1,750 mm, 1,850 mm
(49 in, 69 in, 73 in)- Overall height
2,850 mm, 2,870 mm, 2,950 mm, 3,100 mm
(112 in, 113 in, 116 in, 122 in)
Description
1. Electrical case, computer main case, air conditioning case, refrigerator, decorative sheet metal stamping molding and other pressing process.
2. Metal or non-metal stamping, forming, shallow drawing, shaping and other pressing processes.
Technical features:
1. High efficiency: The use of child mother cylinder fast turn slow, empty line fast, high production efficiency.
2. Intelligent: imported hydraulic control system, pressure, stroke and pressure time can be adjusted according to the pressing process requirements.
3. Long service life: The use of servo motor imported from Italy, high frequency plus hard steel material, stable operation of the machine, long service life
4. Safety: The machine can be equipped with protective cover, fall prevention device, LED working light and infrared ray to improve the safety production index.
Scope of application:
1. Electrical case, computer main case, air conditioning case, refrigerator, decorative sheet metal stamping molding and other pressing process.
2. Metal or non-metal stamping, forming, shallow drawing, shaping and other pressing processes.
