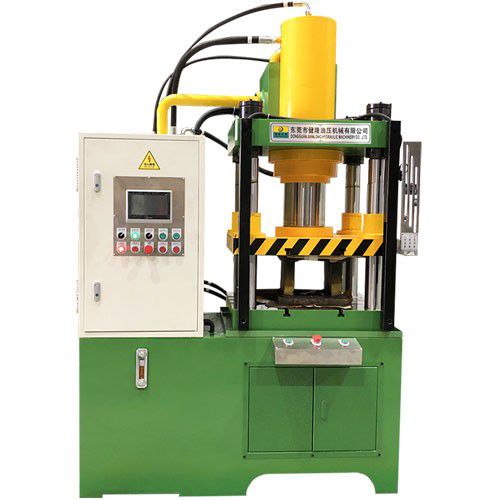

Hydraulic press JLA5 seriesformingstampingautomatic
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- forming, stamping
- Control
- automatic
- Applications
- process, for plastics
- Force
800 kN, 1,000 kN, 1,500 kN, 2,000 kN, 3,000 kN
- Table width
600 mm
(24 in)- Table length
550 mm
(22 in)- Max. pressure
20 MPa, 21 MPa, 24 MPa
- Working speed
8 mm/s, 10 mm/s, 12 mm/s, 15 mm/s
- Return speed
165 mm/s, 170 mm/s
- Hydraulic pump power
7.5 kW, 11 kW, 15 kW
- Hydraulic tank volume
300 l, 360 l, 400 l, 450 l
(79 gal, 95 gal, 106 gal, 119 gal)- Weight
3 t, 4 t, 6 t
(3 us ton, 4 us ton, 7 us ton)- Overall length
1,420 mm, 1,550 mm, 1,760 mm, 1,830 mm
(56 in, 61 in, 69 in, 72 in)- Overall width
1,260 mm, 1,360 mm, 1,550 mm
(50 in, 54 in, 61 in)- Overall height
2,580 mm, 2,650 mm, 2,750 mm, 2,920 mm
(102 in, 104 in, 108 in, 115 in)
Description
1. Electrical appliances, lighting, key body equipment, flower box weight block molding and pressing technology.
2. Suitable for metal and non-metal material forming, counterweight block forming, stamping and other pressing process.
Technical features:
1. Excellent quality: high strength and high quality round steel, surface hardening, electroplating after grinding, good wear resistance.
2. High efficiency: fast down speed of movable plate, high production efficiency.
3. Multifunctional: A machine can be matched according to the requirements of multiple molds, the workbench is equipped with a top cylinder, strong availability
4. Intelligent: with imported hydraulic control system, pressure, stroke and pressure time can be adjusted according to the pressing process requirements.
5. Safety: The machine is equipped with protective cover, LED working light and infrared ray, etc., multiple protection is safer.
Scope of application:
1. Electrical appliances, lighting, key body equipment, flower box weight block molding and pressing technology.
2. Suitable for metal and non-metal material forming, counterweight block forming, stamping and other pressing process.
