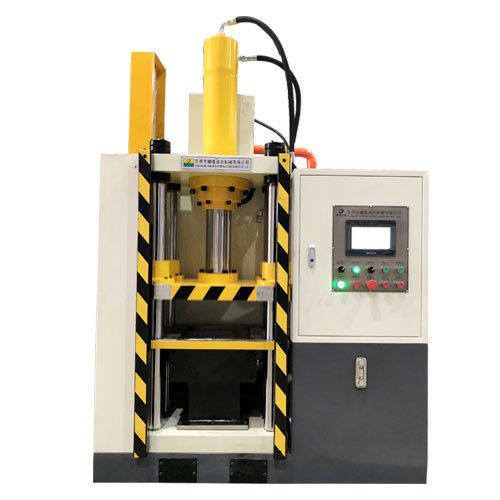

Hydraulic press JLF2 series
formingforgingdrawing

hydraulic press
hydraulic press
hydraulic press
hydraulic press
hydraulic press
Add to favorites
Compare this product


Characteristics

Operation
hydraulic
Function
forming, stamping, bending, drawing, forging
Structure
four column
Applications
for production, process, for composite materials, for powders, for non-ferrous materials
Force

1,500 kN, 2,000 kN, 2,500 kN, 3,500 kN, 5,000 kN

Stroke

250 mm, 300 mm, 350 mm
(9.843 in, 11.811 in, 13.78 in)

Table width

750 mm, 850 mm, 900 mm, 1,100 mm, 1,400 mm
(30 in, 33 in, 35 in, 43 in, 55 in)

Table length

620 mm, 700 mm, 800 mm, 950 mm, 1,200 mm
(24 in, 28 in, 31 in, 37 in, 47 in)

Max. pressure

20 MPa, 21 MPa, 22 MPa

Hydraulic pump power

16 kW, 25 kW, 31 kW, 50 kW

Hydraulic tank volume

500 l, 650 l, 700 l, 800 l, 900 l
(132 gal, 172 gal, 185 gal, 211 gal, 238 gal)

Weight

5 t, 6 t, 9 t, 11 t, 21 t
(6 us ton, 7 us ton, 10 us ton, 12 us ton, 23 us ton)

Overall length

Max.: 2,780 mm
(109 in)

Min.: 1,940 mm
(76 in)

Overall width

Max.: 2,400 mm
(94 in)

Min.: 1,380 mm
(54 in)

Overall height

Max.: 4,750 mm
(187 in)

Min.: 3,250 mm
(128 in)

Description

1. Adopt servo motor imported from Italy, hydraulic control system from Japan, intelligent, stable operation and energy saving; 2. Pressure, stroke, pressure preservation can be adjusted according to the pressing process requirements, the table empty stroke speed is fast, high production efficiency. 3. The four columns are made of high strength material with hard chrome plating and good wear resistance. 4. Movable plate and table are provided with optional return cylinder, which is suitable for tensile extrusion product return requirements. 5. High precision design, the main cylinder adopts integral forging and precision grinding, high reliability under high pressure. Scope of application: 1, auto parts, kitchenware, household appliance accessories, motor and electrical accessories metal shell, cover plate, lighting accessories, etc. 2, metal and non-metal parts of stamping, drawing, bending, flanging, forming and other stamping processing. 3. Powder pressing of metal or non-metal products, such as tea block, salt block, denture, iron products, metallurgy, etc.
