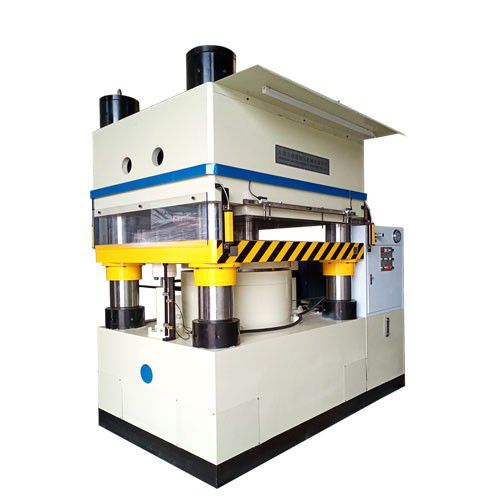

Hydraulic press JLP seriespunchingforgingcutting
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- forging, punching, cutting
- Structure
- double
- Applications
- for production, process, for wood, for paper
- Force
Max.: 1,000 tf
Min.: 300 tf
- Stroke
150 mm
(5.906 in)- Table width
900 mm, 1,050 mm, 1,100 mm, 1,440 mm
(35 in, 41 in, 43 in, 57 in)- Table length
800 mm, 900 mm, 1,100 mm
(31 in, 35 in, 43 in)- Working speed
4 mm/s, 6 mm/s
- Return speed
100 mm/s, 125 mm/s
- Hydraulic pump power
11 kW, 15 kW, 19 kW, 22 kW
- Overall length
Max.: 2,200 mm
(87 in)Min.: 1,580 mm
(62 in)- Overall width
1,705 mm, 1,865 mm, 1,900 mm
(67 in, 73 in, 75 in)- Overall height
1,855 mm, 2,145 mm, 2,720 mm, 2,930 mm
(73 in, 84 in, 107 in, 115 in)
Description
1, the machine is equipped with front and back safety grating, left and right safety shield, double protection safety is more guaranteed;
2, the machine punching precision is high, the operation and adjustment of the tool die is convenient, more efficient production capacity;
3, the hydraulic cylinder adopts the whole forging process, Japan NOK seals, fast speed, high precision, high production capacity;
4, the three beams using solid steel plate processing and stress relief treatment, high quality internal process, the machine runs more stable, longer service life.
Scope of application:
1, jigsaw toy industry special equipment, suitable for paper, wood, white card, blue card and other jigsaw toy punching process.
2. Puzzle cutting of paper and wood products;
3. Plastic product shaping and fitting.
