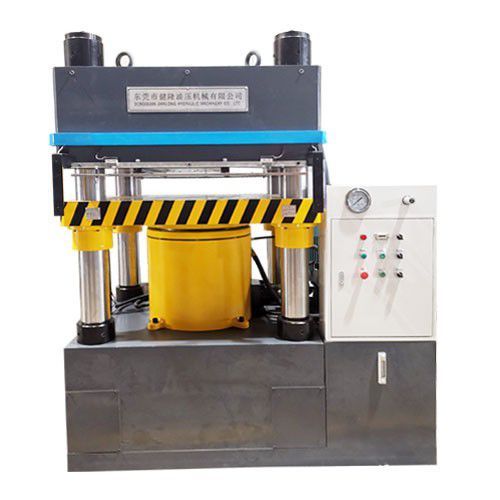

Hydraulic press JLP seriespunchingforgingcutting
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- forging, punching, cutting
- Applications
- process, for plastics, for paper
- Force
300 tf, 500 tf, 800 tf, 1,000 tf
- Stroke
150 mm
(5.906 in)- Table width
900 mm, 1,050 mm, 1,100 mm, 1,440 mm
(35 in, 41 in, 43 in, 57 in)- Table length
800 mm, 900 mm, 1,100 mm
(31 in, 35 in, 43 in)- Working speed
4 mm/s, 6 mm/s
- Return speed
100 mm/s, 125 mm/s
- Hydraulic pump power
11 kW, 15 kW, 19 kW, 22 kW
- Overall length
Max.: 2,200 mm
(87 in)Min.: 1,580 mm
(62 in)- Overall width
Max.: 1,900 mm
(75 in)Min.: 1,705 mm
(67 in)- Overall height
Max.: 2,930 mm
(115 in)Min.: 1,855 mm
(73 in)
Description
1, the machine is equipped with front and back safety grating, left and right safety shield, double protection safety is more guaranteed;
2, the machine punching precision is high, the operation and adjustment of the tool die is convenient, more efficient production capacity;
3, the hydraulic cylinder adopts the whole forging process, Japan NOK seals, fast speed, high precision, high production capacity;
4, the three beams using solid steel plate processing and stress relief treatment, high quality internal process, the machine runs more stable, longer service life.
Scope of application:
1, jigsaw toy industry special equipment, suitable for paper, wood, white card, blue card and other jigsaw toy punching process.
2. Puzzle cutting of paper and wood products;
3. Plastic product shaping and fitting.
