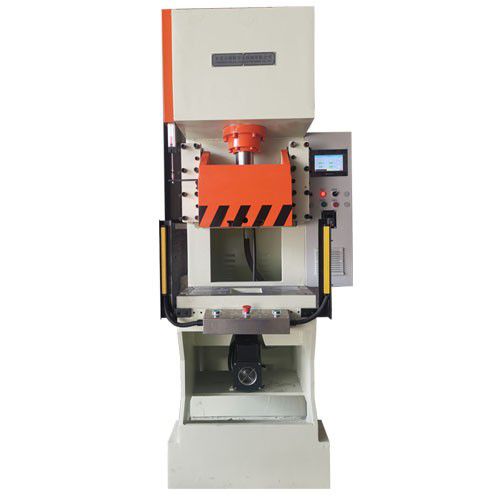

Hydraulic press JLC1 series
electricpunchingforming

hydraulic press
hydraulic press
hydraulic press
hydraulic press
Add to favorites
Compare this product


Characteristics

Operation
hydraulic, electric
Function
forming, stamping, bending, drawing, punching, assembly, riveting, embossing
Control
CNC
Other characteristics
electronic, large opening
Applications
process
Force

Min.: 100 kN

Max.: 1,500 kN

Table width

Min.: 250 mm
(10 in)

Max.: 380 mm
(15 in)

Table length

Min.: 350 mm
(14 in)

Max.: 600 mm
(24 in)

Max. pressure

13 MPa, 19 MPa, 20 MPa, 21 MPa

Working speed

Min.: 15 mm/s

Max.: 40 mm/s

Return speed

Min.: 180 mm/s

Max.: 280 mm/s

Hydraulic pump power

3.8 kW, 5.5 kW, 7.5 kW, 11 kW

Hydraulic tank volume

Min.: 80 l
(21 gal)

Max.: 270 l
(71 gal)

Weight

Min.: 800 kg
(1,764 lb)

Max.: 11,000 kg
(24,251 lb)

Overall length

Min.: 820 mm
(32 in)

Max.: 1,150 mm
(45 in)

Overall width

Min.: 600 mm
(24 in)

Max.: 1,950 mm
(77 in)

Overall height

Min.: 2,000 mm
(79 in)

Max.: 2,670 mm
(105 in)

Description

1. Metal or non-metal parts embossing, forming, shallow drawing, shaping, deformation correction and pressure assembly, etc. 2, hand accessories, locks, electric boxes, glasses, motor and large sheet metal bending, punching and other processing technology; 3, electronic products punching, riveting, forming, composite materials and release materials punching, stamping, punching stamping and other processes; Technical features: 1. Adopt imported servo motor, hydraulic control system, built-in fast cylinder, fast empty stroke speed, high production efficiency; 2, hands synchronous operation, convenient stroke adjustment; 3, the operation space of the whole element barrier, long stroke, large opening space, convenient product processing; 4, infrared protection, safer operation; 5, pressure, stroke, etc. can be adjusted according to the pressing process requirements;
