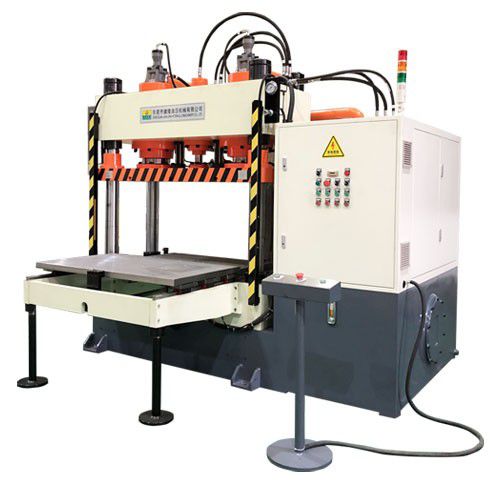

Hydraulic press JLA1 seriespunchingformingveneer
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- forming, punching, embossing, veneer
- Structure
- frame, four column, table type
- Control
- automatic
- Other characteristics
- hot
- Applications
- process, for automotive parts, for carbon fiber-reinforced plastic parts
- Force
400 kN, 500 kN, 600 kN, 2,000 kN, 3,000 kN
- Table width
600 mm, 650 mm
(24 in, 26 in)- Table length
550 mm
(22 in)- Max. pressure
19 MPa, 20 MPa, 24 MPa
- Working speed
Max.: 20 mm/s
Min.: 8 mm/s
- Return speed
165 mm/s, 180 mm/s, 190 mm/s, 210 mm/s
- Hydraulic pump power
5.5 kW, 11 kW, 15 kW
- Weight
2 t, 3 t, 5 t, 6 t
(2 us ton, 3 us ton, 6 us ton, 7 us ton)- Overall length
Max.: 1,420 mm
(56 in)Min.: 1,130 mm
(44 in)- Overall width
Max.: 1,550 mm
(61 in)Min.: 950 mm
(37 in)- Overall height
Max.: 2,750 mm
(108 in)Min.: 2,455 mm
(97 in)
Description
1. Adopt the whole welded frame type fuselage, the overall rigidity is good, high compressive strength
2. The use of imported servo motor, hydraulic control system, movable table up speed, high production efficiency
3. Flexible and convenient, the pressure, stroke and pressure time can be adjusted according to the pressing process requirements
4. High temperature resistant machine, equipped with safety electronic eye, safety protective cover, improve the hot pressing production safety index
Scope of application:
1. Suitable for all kinds of plastic hot pressing and embossing, all kinds of composite sheets and new materials forming punching process;
2. Suitable for furniture factory, artificial board secondary processing technology;
3. All kinds of decorative materials: such as PVCX, veneer, sticker decorative cloth leveling, shaping process, etc.
