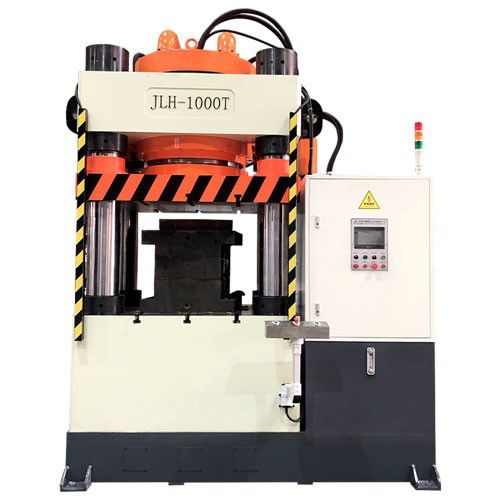

Hydraulic press JLA1 seriespunchingformingcompression
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- forming, punching, compression, embossing, veneer
- Structure
- frame
- Other characteristics
- hot, electronic
- Applications
- for production, process, for sheet metal, for composite materials, for carbon fiber-reinforced plastic parts
- Force
Min.: 400 kN
Max.: 3,000 kN
- Table width
600 mm, 650 mm
(24 in, 26 in)- Table length
550 mm
(22 in)- Max. pressure
19 MPa, 20 MPa, 24 MPa
- Working speed
Min.: 8 mm/s
Max.: 20 mm/s
- Return speed
165 mm/s, 180 mm/s, 190 mm/s, 210 mm/s
- Hydraulic pump power
5.5 kW, 11 kW
- Weight
Min.: 2 t
(2 us ton)Max.: 6 t
(7 us ton)- Overall length
1,130 mm, 1,250 mm, 1,420 mm
(44 in, 49 in, 56 in)- Overall width
950 mm, 1,320 mm, 1,550 mm
(37 in, 52 in, 61 in)- Overall height
2,455 mm, 2,495 mm, 2,510 mm, 2,610 mm, 2,750 mm
(97 in, 98 in, 99 in, 103 in, 108 in)
Description
1. Adopt the whole welded frame type fuselage, the overall rigidity is good, high compressive strength
2. The use of imported servo motor, hydraulic control system, movable table up speed, high production efficiency
3. Flexible and convenient, the pressure, stroke and pressure time can be adjusted according to the pressing process requirements
4. High temperature resistant machine, equipped with safety electronic eye, safety protective cover, improve the hot pressing production safety index
Scope of application:
1. Suitable for all kinds of plastic hot pressing and embossing, all kinds of composite sheets and new materials forming punching process;
2. Suitable for furniture factory, artificial board secondary processing technology;
3. All kinds of decorative materials: such as PVCX, veneer, sticker decorative cloth leveling, shaping process, etc.
