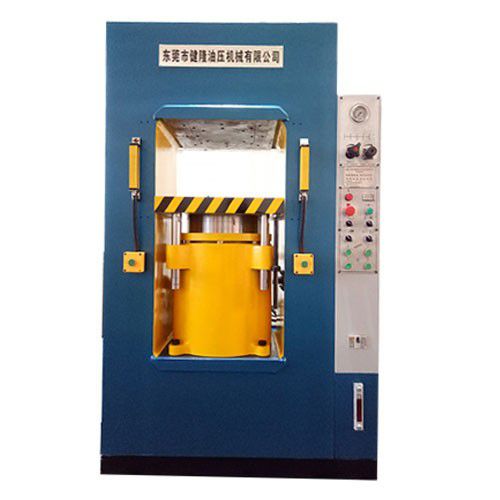

Hydraulic press JLK1 seriespunchingcompressiondrawing
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- stamping, bending, drawing, punching, compression
- Structure
- frame
- Control
- automatic
- Other characteristics
- electronic
- Applications
- for production, process, for automotive parts, pot
- Force
Min.: 100 tf
Max.: 2,000 tf
- Stroke
110 mm, 150 mm, 160 mm
(4.331 in, 5.906 in, 6.299 in)- Table width
Min.: 420 mm
(17 in)Max.: 1,350 mm
(53 in)- Table length
Min.: 420 mm
(17 in)Max.: 1,350 mm
(53 in)- Max. pressure
22 MPa, 24 MPa, 25 MPa
- Working speed
Min.: 970 mm/s
Max.: 2,000 mm/s
- Return speed
75 mm/s, 90 mm/s, 100 mm/s, 150 mm/s
- Approaching speed
80 mm/s, 90 mm/s, 135 mm/s, 180 mm/s
- Hydraulic pump power
Min.: 4 kW
Max.: 30 kW
- Weight
Min.: 925 t
(1,020 us ton)Max.: 2,400 t
(2,646 us ton)- Overall length
Min.: 750 mm
(30 in)Max.: 2,600 mm
(102 in)- Overall width
Min.: 1,650 mm
(65 in)Max.: 3,300 mm
(130 in)
Description
1. Adopt integral welded frame type fuselage, overall rigidity is good, high compressive strength.
2. The use of imported servo motor, hydraulic control system, movable table up speed, high production efficiency.
3. Flexible and convenient, the pressure, stroke and pressure time can be adjusted according to the pressing process requirements.
4. The machine is equipped with safety electronic eye and safety protective cover to improve the production safety index.
Scope of application:
1. Case, watchband, glasses frame and tableware, signs, locks, auto parts and hardware parts pressing process.
2. Metal or non-metal stamping, shallow drawing, bending, flanging, shaping and other pressing.
3, household appliances, lighting, craft flower pot and other counterweight block molding;
4, metal products stamping, punching and stamping technology
