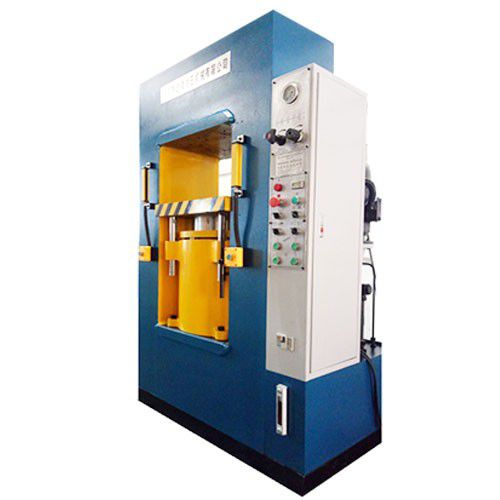

Hydraulic press JLX1 series
punchingformingdrawing

hydraulic press
hydraulic press
hydraulic press
hydraulic press
Add to favorites
Compare this product


Characteristics

Operation
hydraulic
Function
forming, stamping, drawing, punching, riveting
Structure
frame, table type
Other characteristics
electronic
Applications
for production, for steel, for composite materials, for non-ferrous materials
Force

Max.: 2,000 tf

Min.: 100 tf

Max. pressure

20 MPa, 22 MPa, 24 MPa, 25 MPa

Return speed

Min.: 75 mm/s

Max.: 150 mm/s

Approaching speed

80 mm/s, 90 mm/s, 100 mm/s, 135 mm/s, 180 mm/s

Hydraulic pump power

Max.: 30 kW

Min.: 4 kW

Overall length

Min.: 1,140 mm
(45 in)

Max.: 2,400 mm
(94 in)

Overall width

Min.: 980 mm
(39 in)

Max.: 2,600 mm
(102 in)

Overall height

Min.: 1,400 mm
(55 in)

Max.: 3,300 mm
(130 in)

Description

1, stainless steel tableware forming hydraulic press using frame structure, work activity table high precision, good rigidity, strong lateral force, especially suitable for pressing high precision and asymmetric products; 2, the use of imported servo motor, hydraulic control system, mobile table speed, high production efficiency; 3, stainless steel knife, fork and spoon forming hydraulic press can be equipped with fully automated production, improve efficiency, and China Dongguan Jianlong oil pressure Machinery Co., Ltd. can improve the technology packaging program Scope of application: 1, hardware, electronic products punching, riveting, forming, composite materials and release materials punching, stamping, punching and stamping technology; 2, metal or non-metal parts of the impression, forming, shallow drawing, shaping, die and edge cutting; 3, the typical products can be pressed badges, MEDALS, watchcase, watchband, glasses, frames and parts, frames, tableware, signs, locks, hardware parts and so on.
