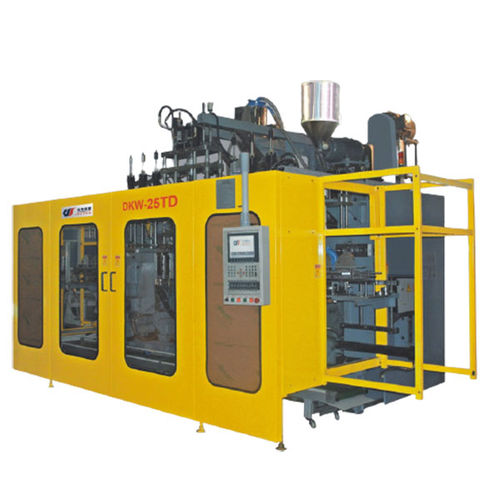

Extrusion blow molding machine DKW-25T

for PPfor PEfor bottles

Features • - HMI Touch Screen, Incorporating with PLC system (Optional Siemens/B&R Control) for easy maintenance. • - Blowing Unit/ Die Head movement for changing mold easily, as option. • - Built with safety devices to provide maximum protection for the machine operator. • - High plasticizing capacity extrusion screw is designed to handle material variations. • - Plasticizing screw and barrel is precision machined from special nitrogen treated steel. • - Water cooling technology controls feed zone temperature. • - Chiller circulated hydraulically controlled blow-pin. • - When requiring both functions in a single machine, purchase the machine for PVC application and order the additional parts (screw and die head ) for conversion to PE application. DKW-25T multi-layer plastic blow molding machine • - Double Station • - Single/Double/Triple/Q.12 Head • - Horizontal Operated Clamping System • - Production Volume:2ml~35L • - Multi layers: Co-Extrusion 1-6 Layers • - Multi cavities: 1~12 cavities • - Specialize for the PE/PP/PETG/PVC/Nylon/Co-Extrusion material • - Special function: View Stripe • - Clamping system: Toggle/3 Tie Bar/4 Tie Bar • - Driven Model: Hybrid servo motor drive system/ High performance hydraulic power saving system/Close loop proportional valve • - Support Parison controller/Auto Deflashing/Auto Recycling/Auto material feeder/Remote trouble shooting funciton/IML(in mold labeling) Advantages • - Clamp sizes / quantity to match all requirements • - Easily configured for monolayer and multi-layer applications • - Single or multi parison • - Efficient electric drive(s) on extrusion system • - Low profile for ease of operator access • - Part removal and trimming matched to the application
