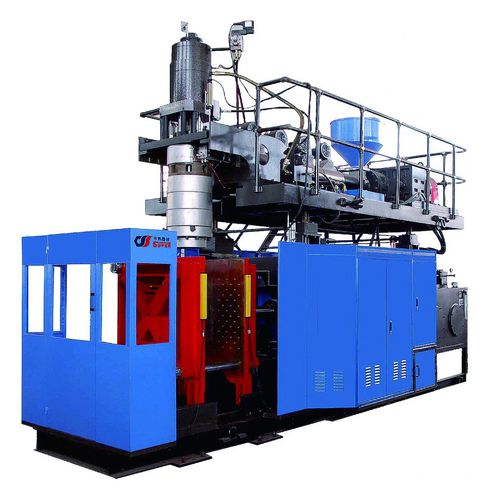

Extrusion blow molding machine SPB-230LS

for PPfor PEfor PVC

Application: Suitable for all car parts, large toys, gas-tank, large toolbag, office desks&chairs. plastic volume in 40-230L. plastic material including PE、PP、PS etc. Features HMI Touch Screen, Incorporating with PLC system (Optional Siemens/B&R Control) for easy maintenance. Blowing Unit/ Die Head movement for changing mold easily, as option. Built with safety devices to provide maximum protection for the machine operator. High plasticizing capacity extrusion screw is designed to handle material variations. Plasticizing screw and barrel is precision machined from special nitrogen treated steel. Water cooling technology controls feed zone temperature. Chiller circulated hydraulically controlled blow-pin. When requiring both functions in a single machine, purchase the machine for PVC application and order the additional parts (screw and die head ) for conversion to PE application. SPB-230LS Accumulative Blow Molding Machine For Large Volume Chemical Barrels Single Station Single Head Production Volume:10L~230L Specialize for the PE/PP/PC/Nylon Clamping system:Tie bar Type Driven Model: Hybrid servo motor drive system/ High performace hydraluic power saving system/Close loop proportional valve Support Parison controller/Auto Recycling/Auto material feeder/Remote trouble shooting funciton/IML Large storage Blow Molding Machine (blowing machine) can produce 20-120L containers, with Human-machine interface; easy operation system and steady as well as high-speed color change; Optional 30 points or 100 points parison wall thickness controller
